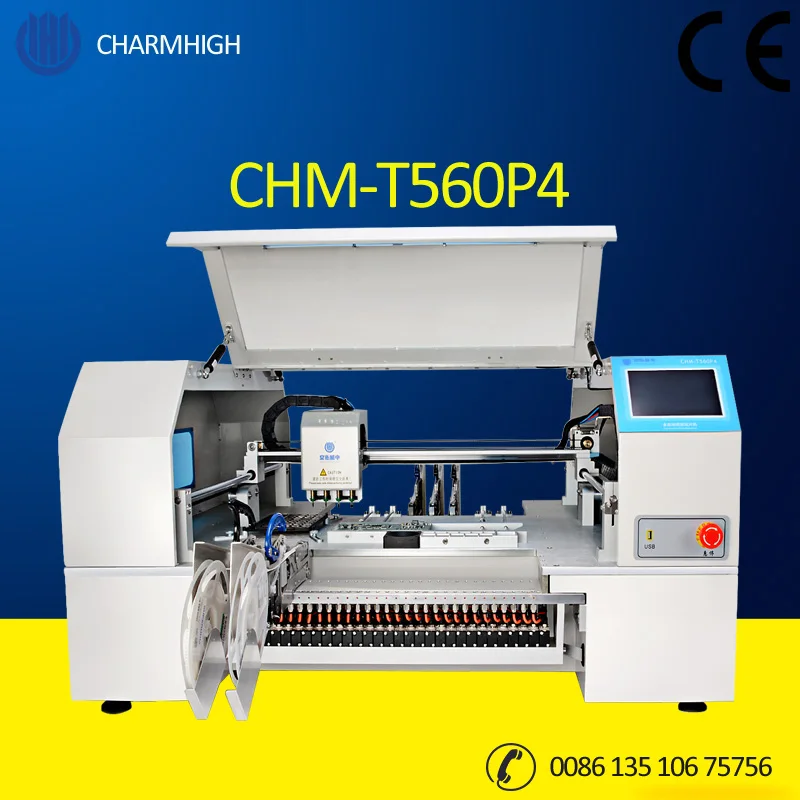

4 Heads 60 Feeders CHMT560P4 Advanced Table top SMT pick and place machine, work with Yamaha pneumatic feeder 8mm 12mm 16mm 24mm
4 Heads 60 Feeders CHMT560P4 Advanced Table top SMT pick and place machine, work with Yamaha pneumatic feeder 8mm 12mm 16mm 24mm
4 Heads 60 Feeders CHMT560P4 Advanced Table top SMT pick and place machine, work with Yamaha pneumatic feeder 8mm 12mm 16mm 24mm
4 Heads 60 Feeders CHMT560P4 Advanced Table top SMT pick and place machine, work with Yamaha pneumatic feeder 8mm 12mm 16mm 24mm

4 Heads 60 Feeders CHMT560P4 Advanced Table top SMT pick and place machine, work with Yamaha pneumatic feeder 8mm 12mm 16mm 24mm

$14,751.99 $11,600.99 Sale

Condition: New; Model Number: CHMT560P4 (4 heads + 60 feeders);

4 Heads 60 Feeders CHMT560P4 Advanced Desktop SMT pick and place machine, work with Yamaha pneumatic feeder 8mm 12mm 16mm 24mm

Advanced Pick and Place Machine 110v 220V English Version CE Passed



Please find Video in Youtu link:



CHMT560P4 pick and place machine placing different kinds of IC:
www.youtube.com/watch?v=0NPlVMwzVCU&t=81s

60pcs Feeders with 4 heads pick and place machine CHMT560P4:
www.youtube.com/watch?v=kXWaDEFIRSE

CHMT560P4 working video for IC 100pins - Charmhigh
www.youtube.com/watch?v=azWuAZ1CYF8

4 heads 60pcs feeders pnp machine CHMT560P4 simple look:


English Version 110V/220v  Charmhigh CHMT560P4 (4 heads type + 60 feeders)

Recommend to all of you!

Free shipping DHL / TNT

Gross weight: 218kg

Packing: wooden case (safe packing)


560P4



Description:


This CHMT560P4 is an updated model from CHMT530P4 which has 60 feeders with 4 heads Juki Nozzle placement, more material supported with high speed mounting, working with Yamaha p neumatic feeders 8mm 12mm 16mm 24mm,  and also Yamaha vibration feeder accept by customer in market, very table and convenient!  This machine for small smt production is your good helper!

The operation system is industry level embedded Linux system, the main board of machine was researched by ourself, which is more relaible than windows system, and life time is much longer. CHMT560P4 using 502---507 different kinds of Juki nozzles, suitable for 0402,0603, 0805-5050, SOP,QFN,LQFP,Diode,Transistor,BGA...etc, which can meet more customers' demand.



Charmhigh CHM-T560P4 Technical Parameters



Parameters
Model CHMT560P4
XYZ Axis travel 600mm(X)×630mm(Y)×20mm(Z)  ---- Highest component (10mm)
PCB max size 400mm(L)×270mm(W)
Support components 0201-0402-5050, SOP, QFN,BGA etc.
Mounting speed
  • Without vision:8000cph
  • With Vision:5500cph
Precision ±0.025mm
Placement head 4 heads
Feeding system

Support max 30pcs 8mm Pneumatic feeder (other options: 12,16,24mm,vibration feeder)

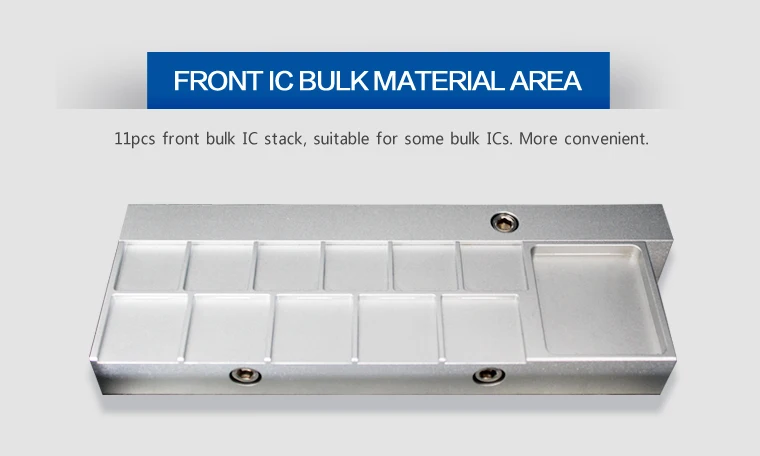

  • 14pcs general IC stack
  • Support IC tray

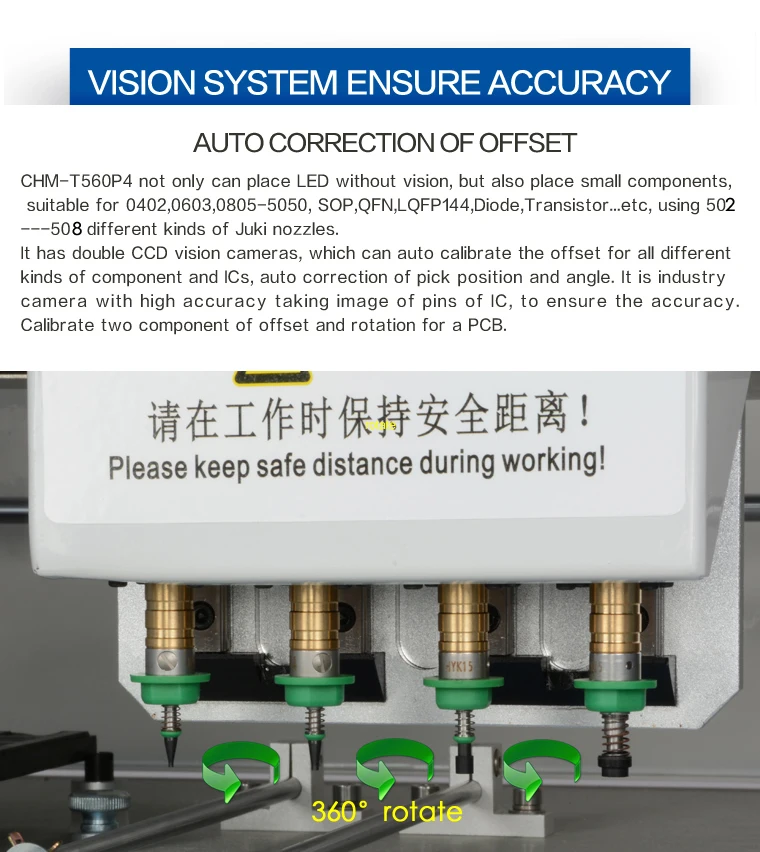

Vision detection Double camera (up & down)  support max size of IC:22*22mm
Motor control
  • XY Axis stepper motor with encoder closed-loop control
  • Flexible S deceleration

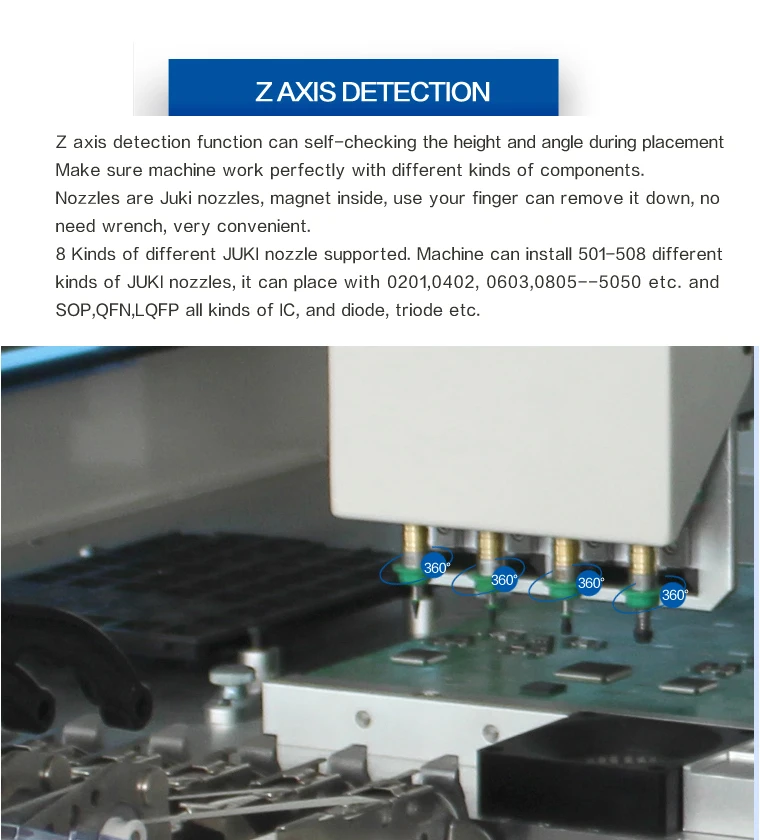

  • Z Axis reset detection
Components leakage detection Vacuum and vision detection
Main board High-reliability industry motherboard
Touch Screen 7 inches industry screen, external mouse control supported
Operation system Embedded Linux system
External air source 0.5MPa
Power supply AC220V 50Hz / AC110V 60Hz
Demension 1180mm(L)×870mm(W)×600mm(H)
Compatible software Altium designer, Protell99SE, PADS, Kicad,Eagle, Cadint, Cadence Orcad, Cadence Allegro, PROTEUS..etc
Net weight 150Kg






This link offer is:  (complete machine, ready for work, no need external monitor)



1) Pick and Place MachineCHMT560P4: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Grease: 1
6) Hex wrench: 6
7) Tweezers: 1
8) Brush: 1
9) English user manual: 1





Applications industry:


Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

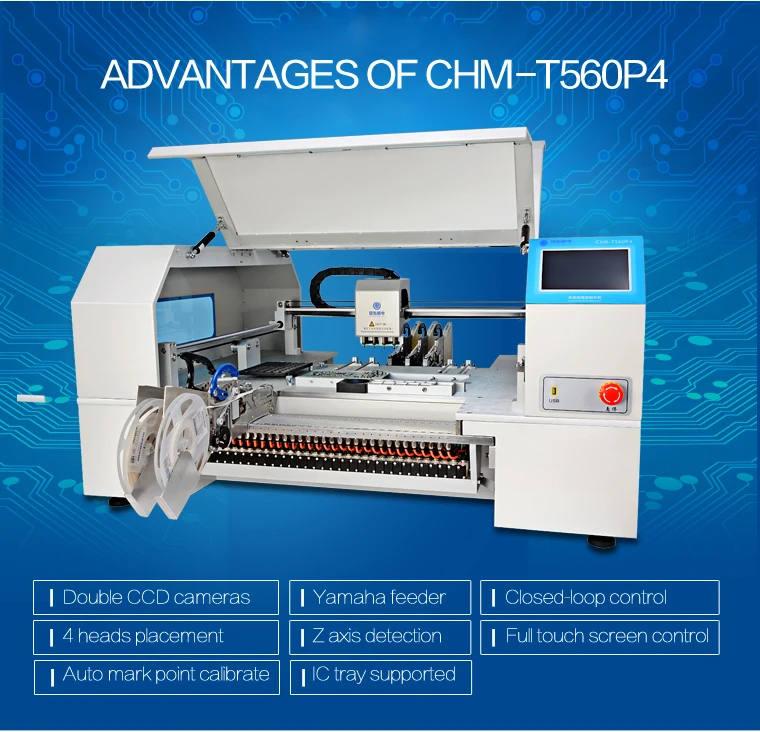

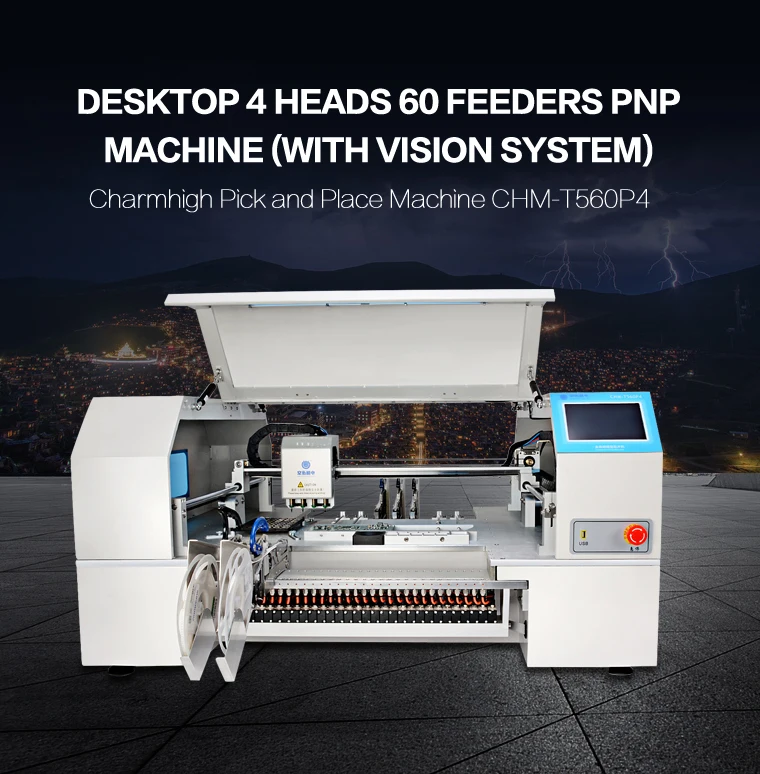

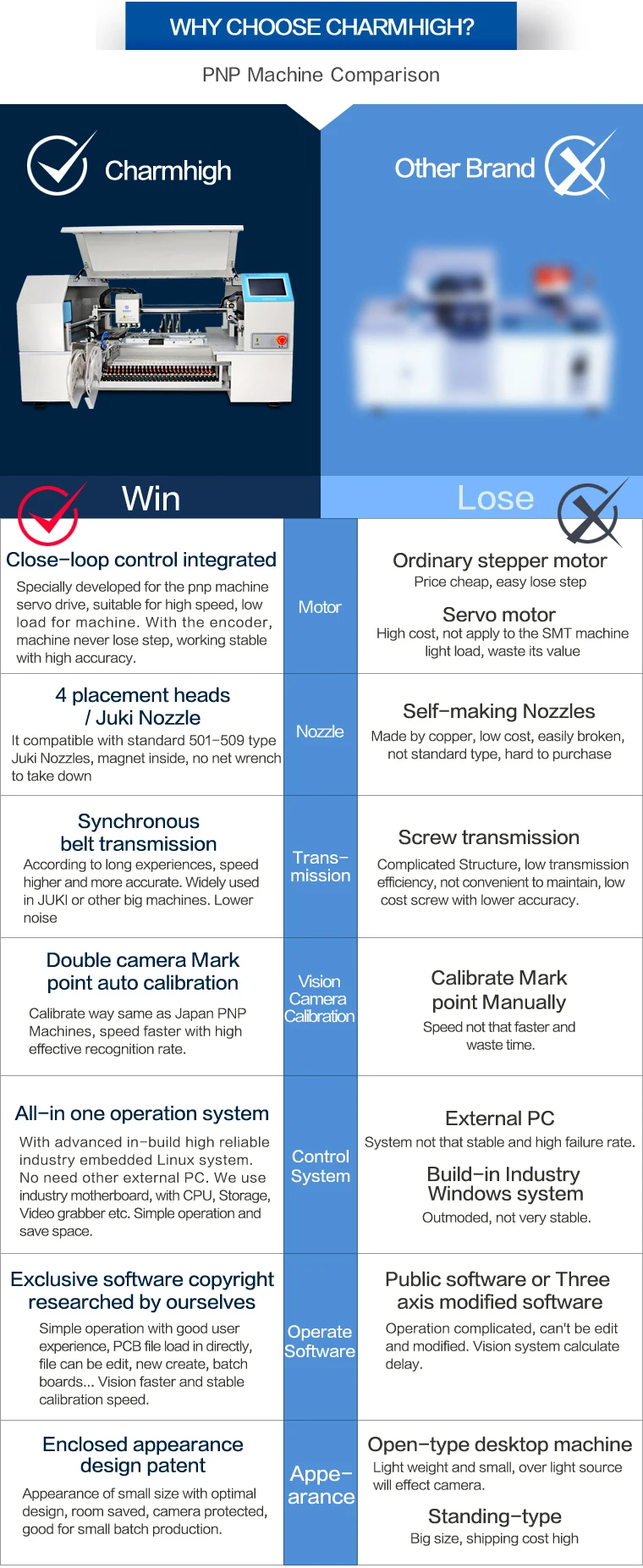

 CHMT560P4_01CHMT560P4_02CHMT560P4_04CHMT560P4_05CHMT560P4_06CHMT560P4_07

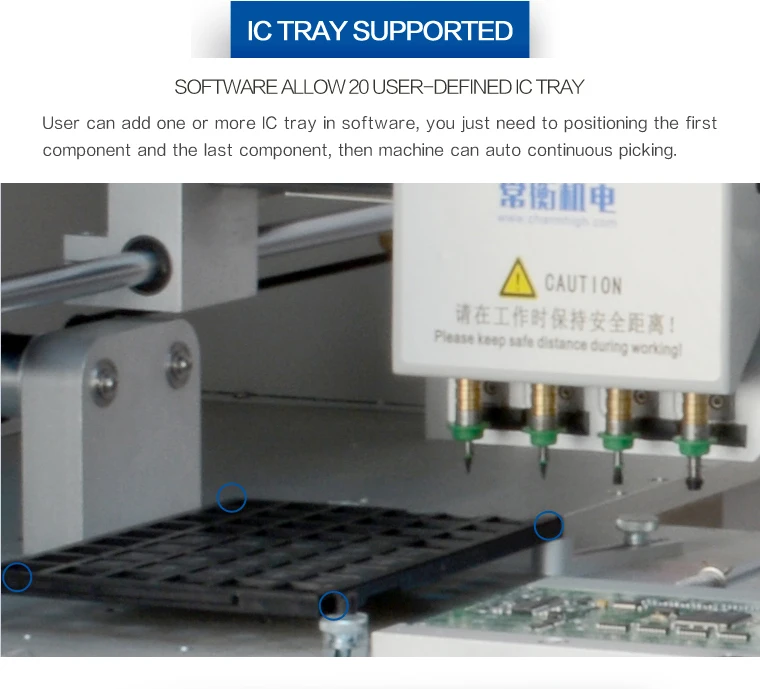

CHMT560P4_08CHMT560P4_09CHMT560P4_10CHMT560P4_11CHMT560P4_12CHMT560P4_13

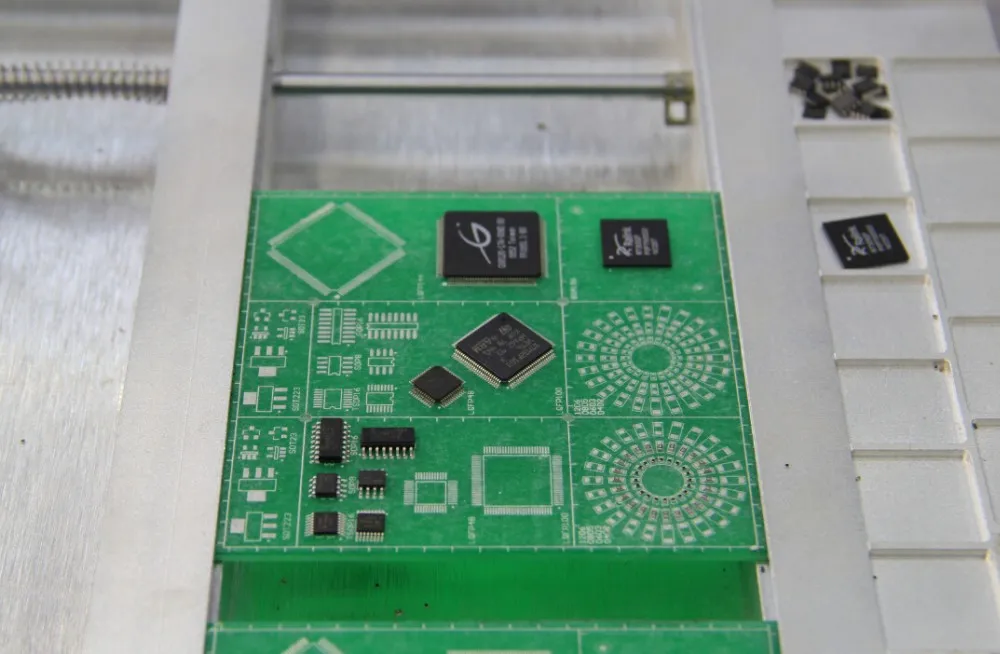

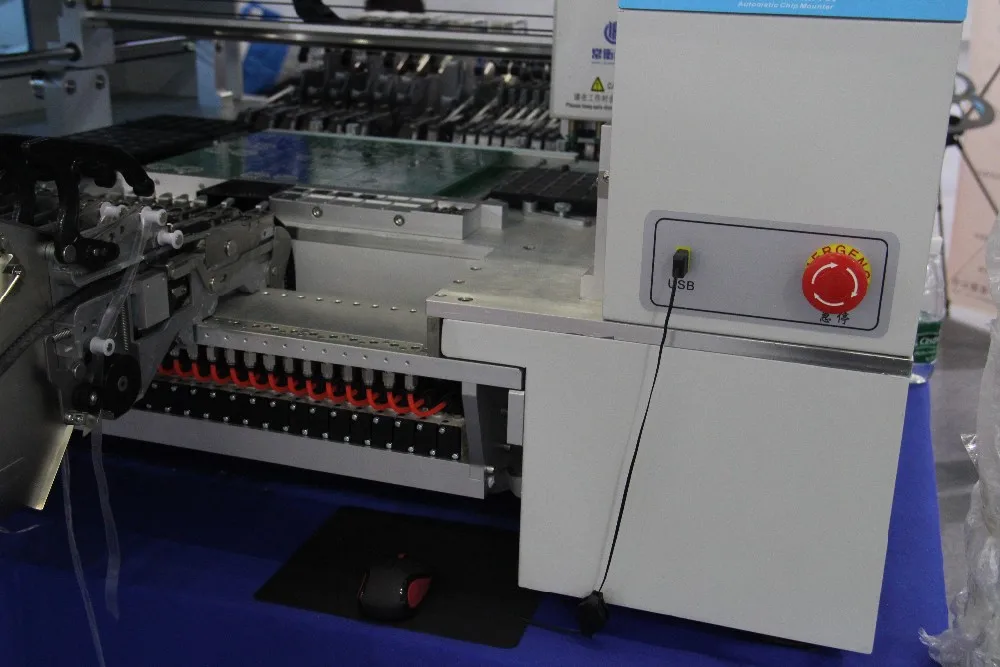

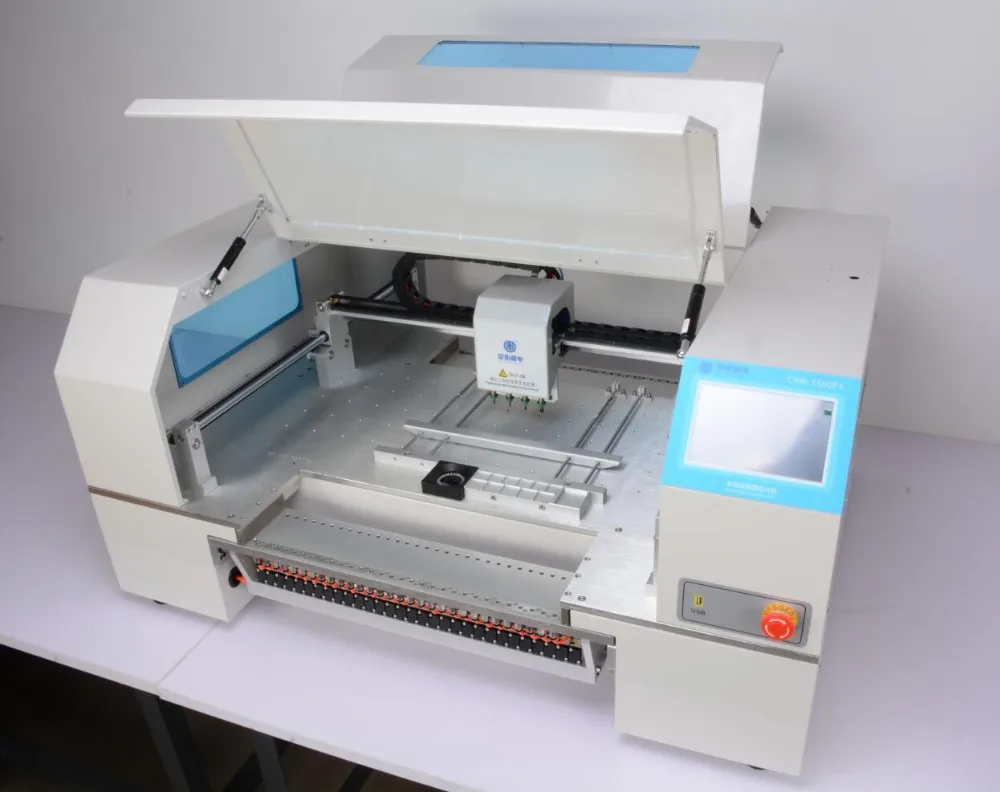

100% real pictures:

QQ20161124153319

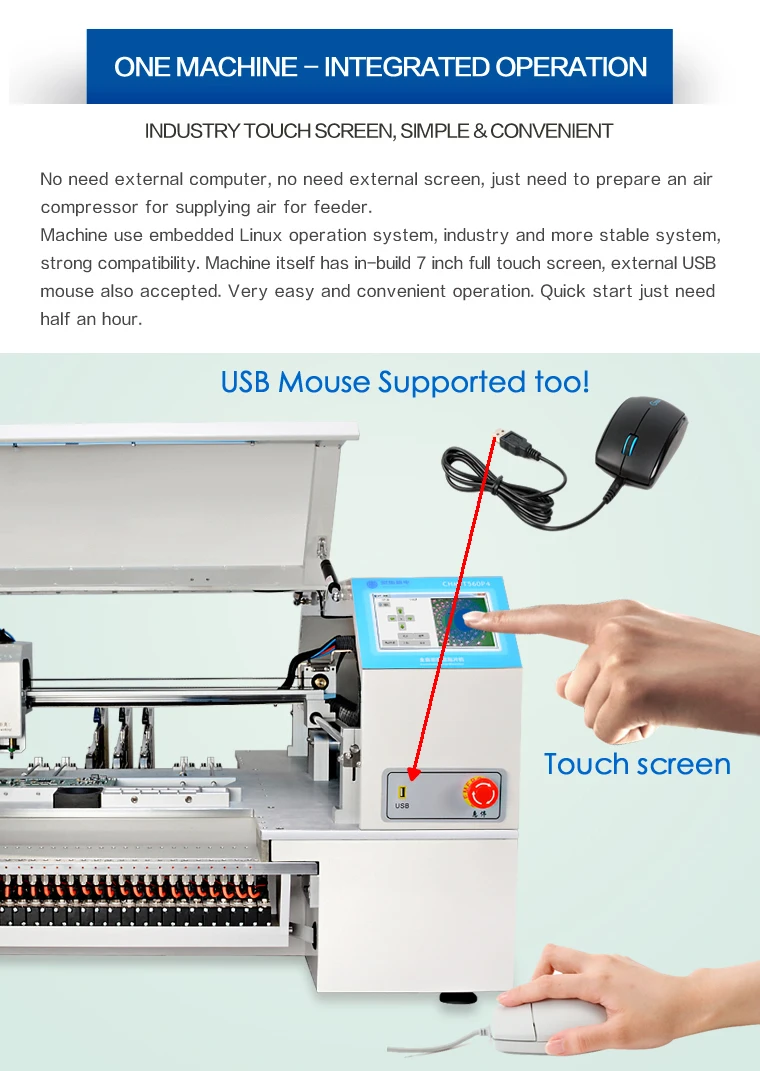

USB Mouse and touch screen both supported:

IMG_0141

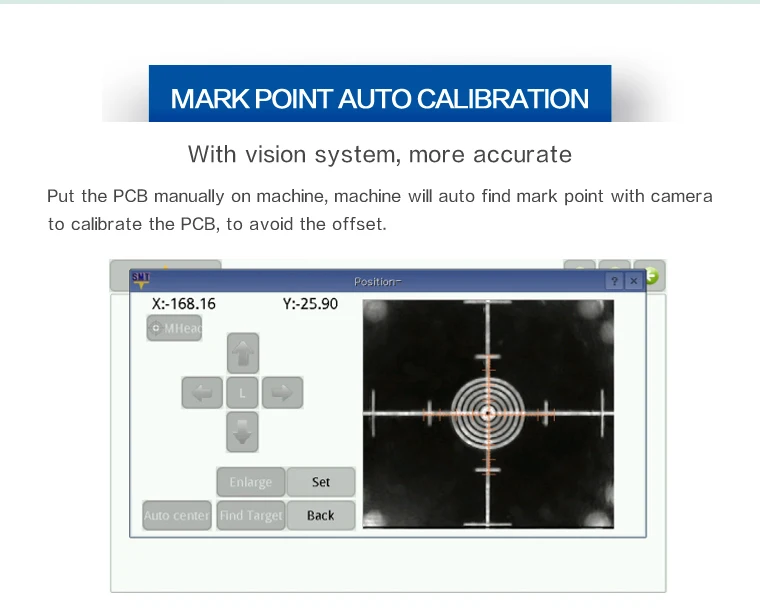

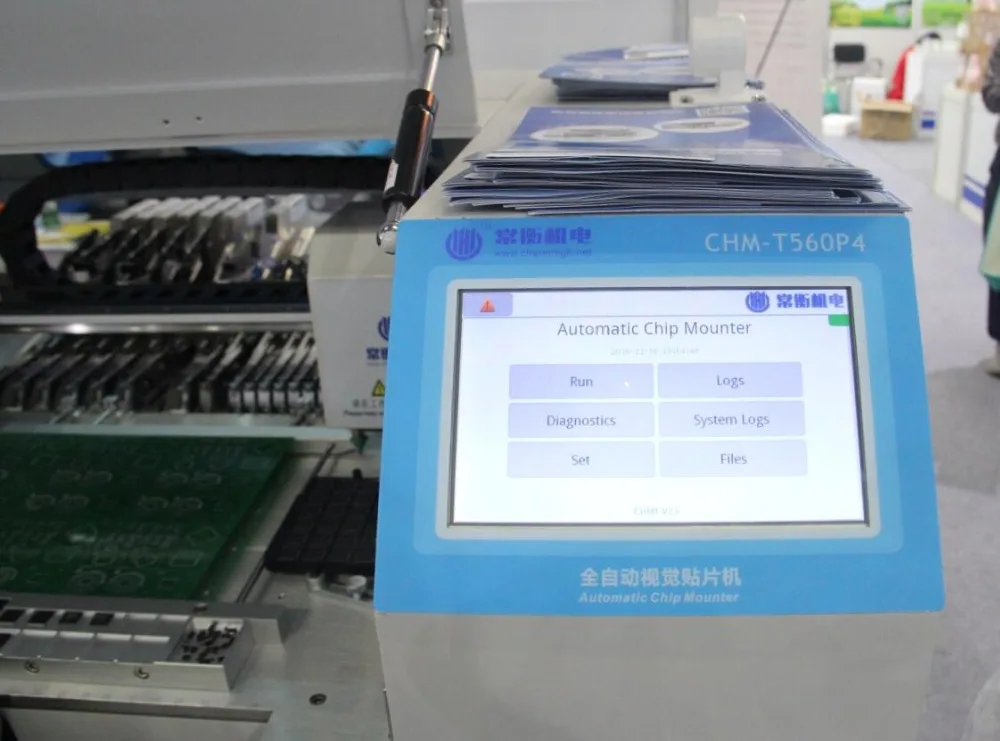

Full touch screen operation, no need external monitor or computer, very easy operation:
USB mouse supported as well!

SCREEN

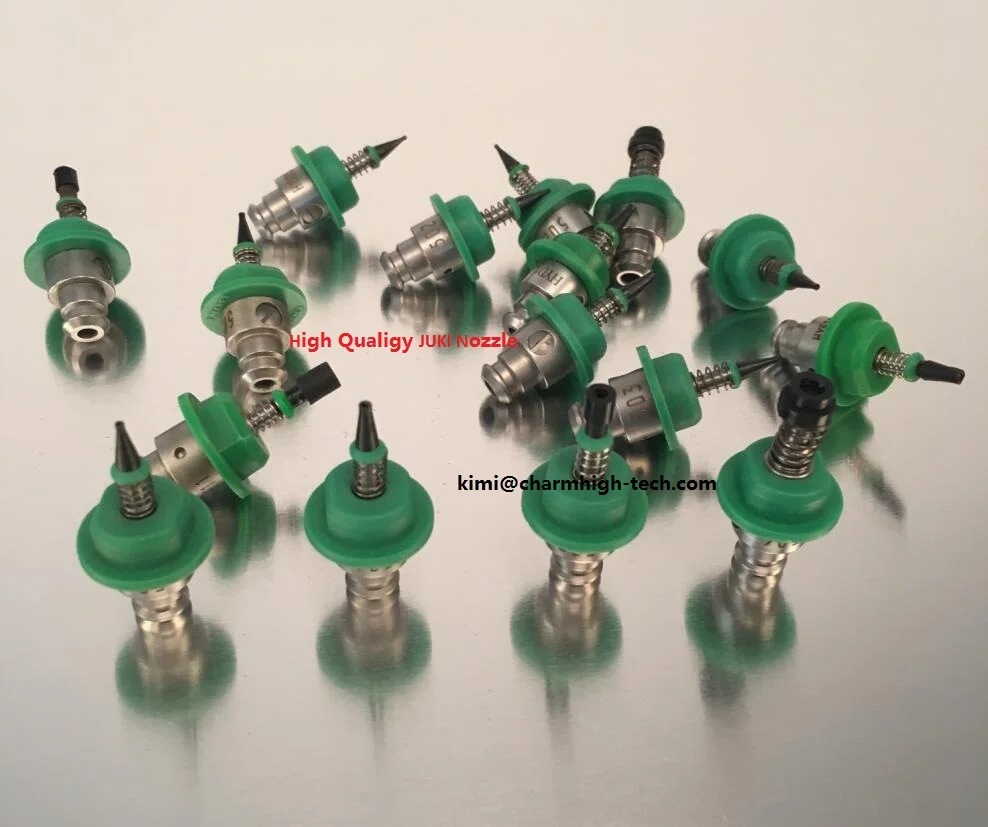

Juki nozzles: (Different types you can choose from type 502-508)


QQ20170301010538

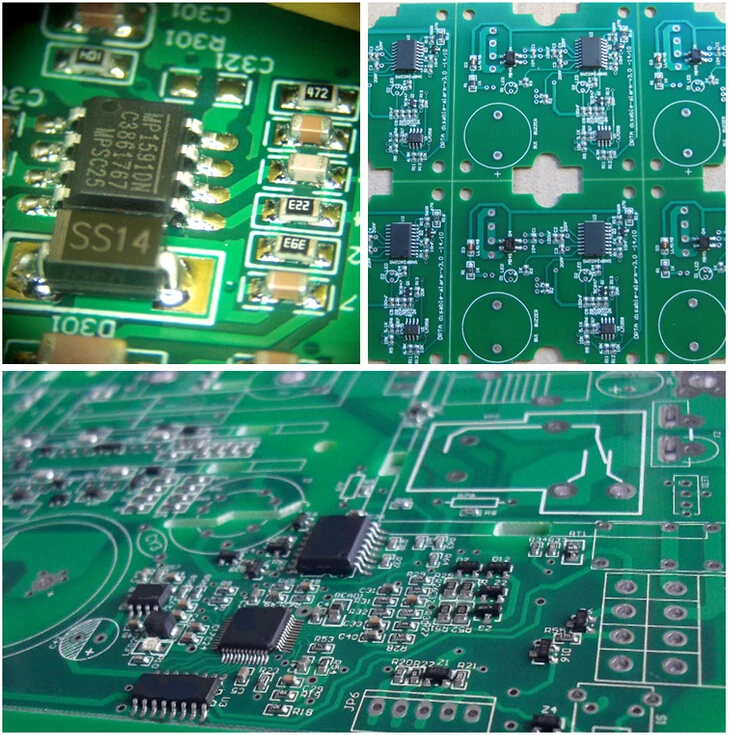

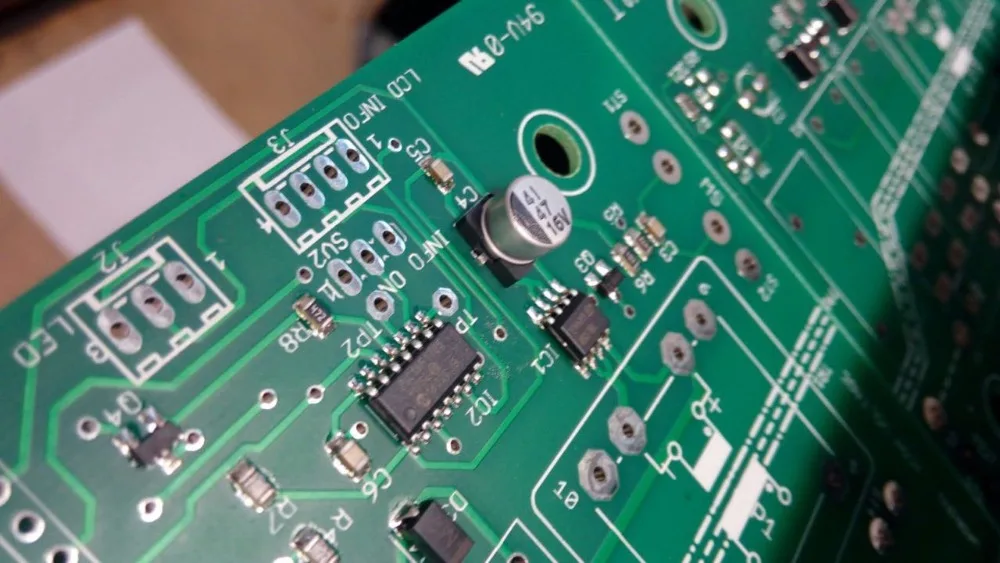

Samples:

SAMPLE~
Italy 5.5mm or 6mm height

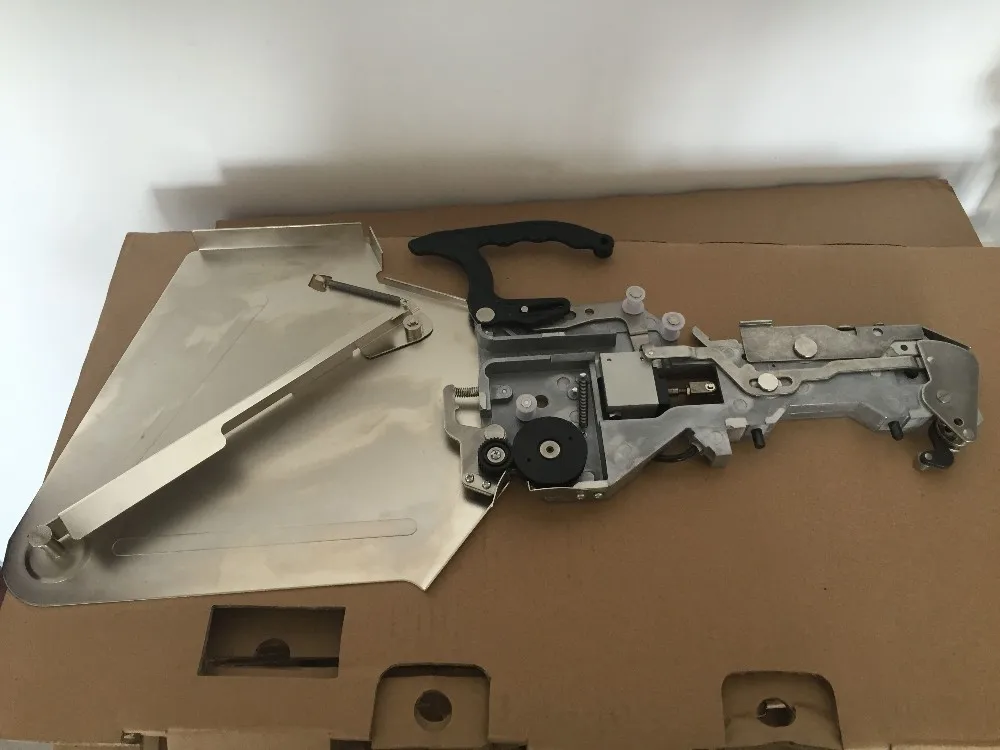

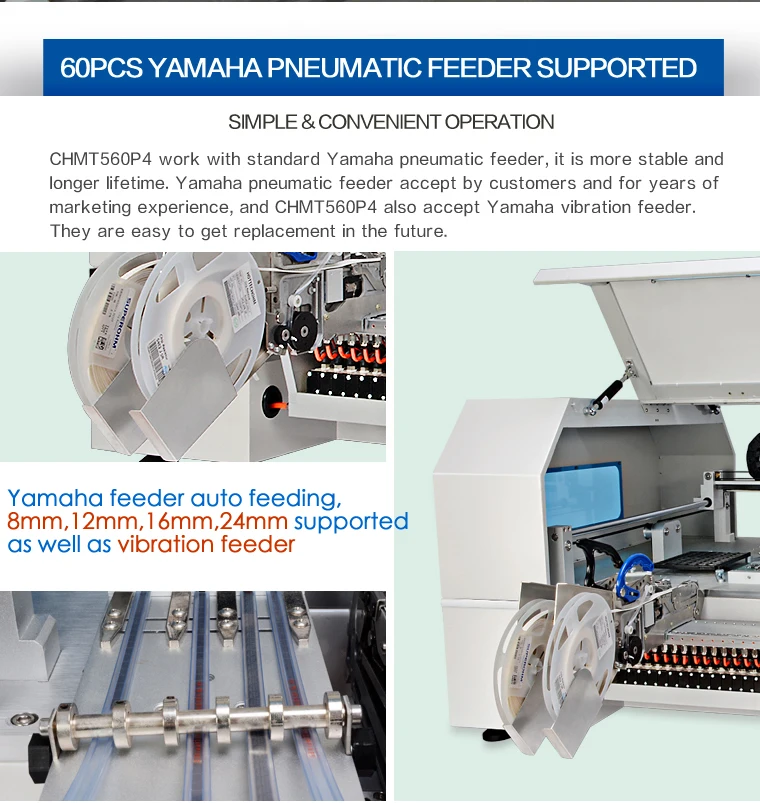

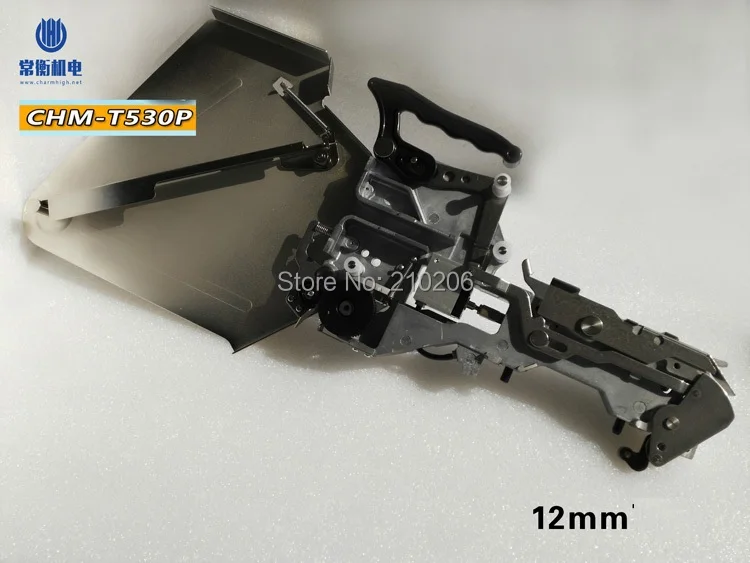

Yamaha Feeders:

Option:
8mm / 12mm/ 16mm / 24mm + vibration feeder

8mm 3.jpg 12mm 1.jpg 16mm 2.jpg

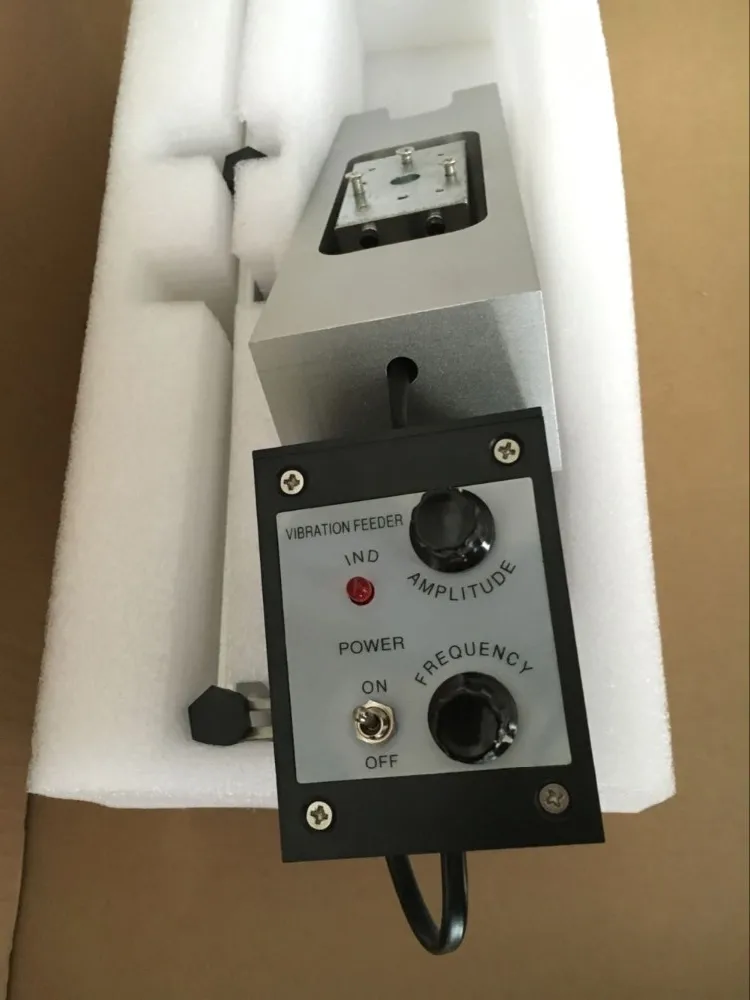

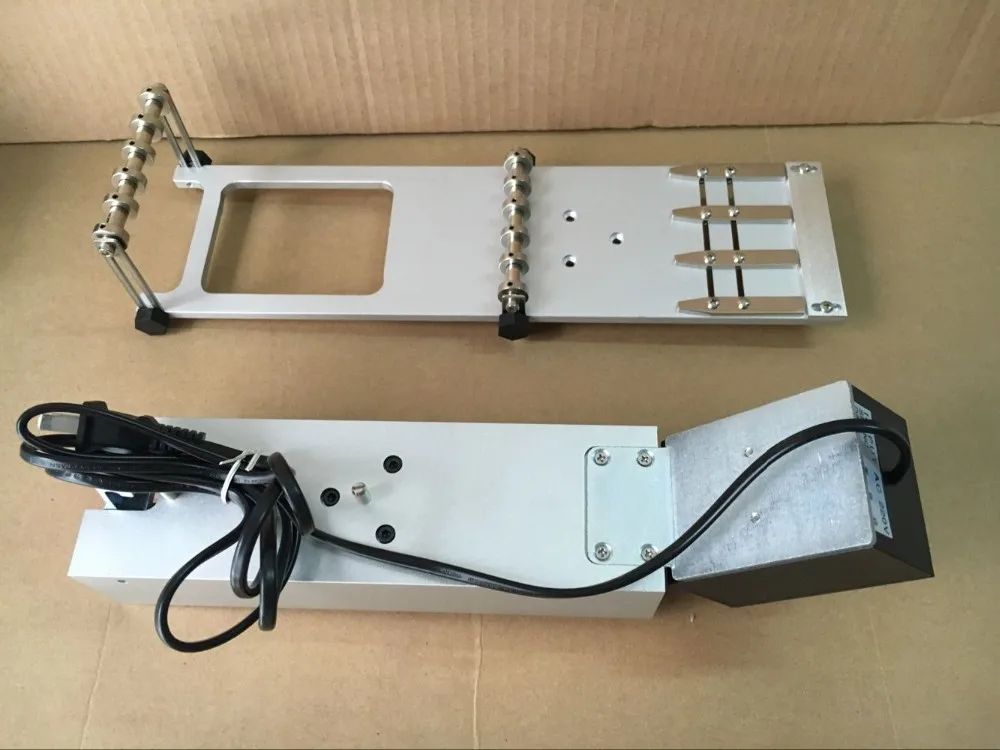

Yamaha Vibration Feeder

IMG_3528
IMG_3526
4

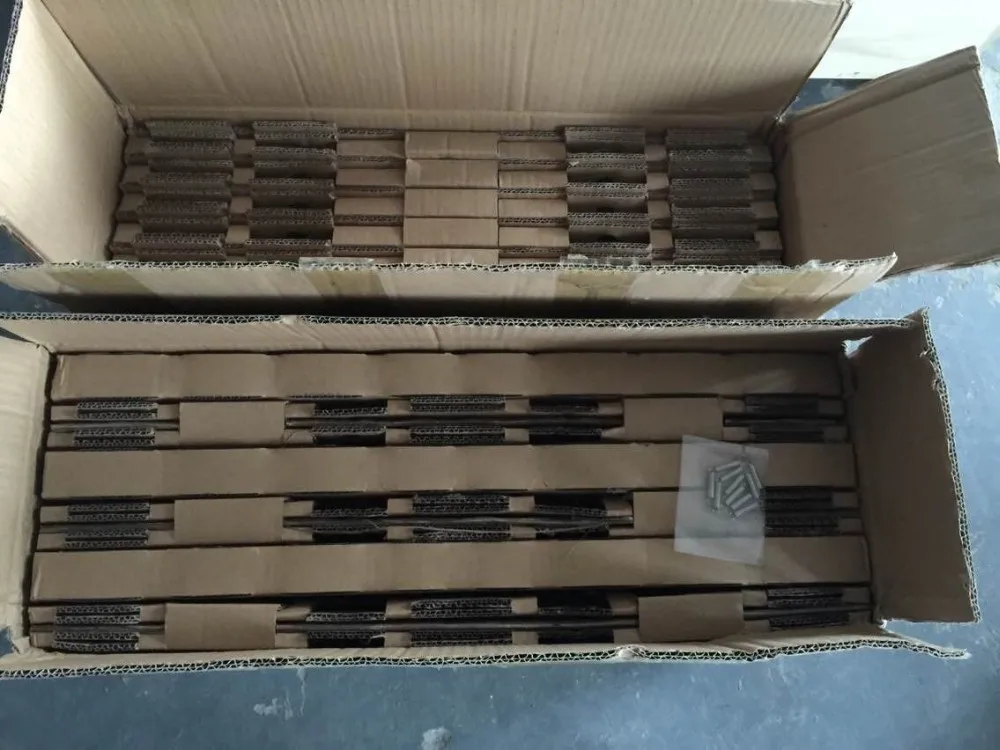

7

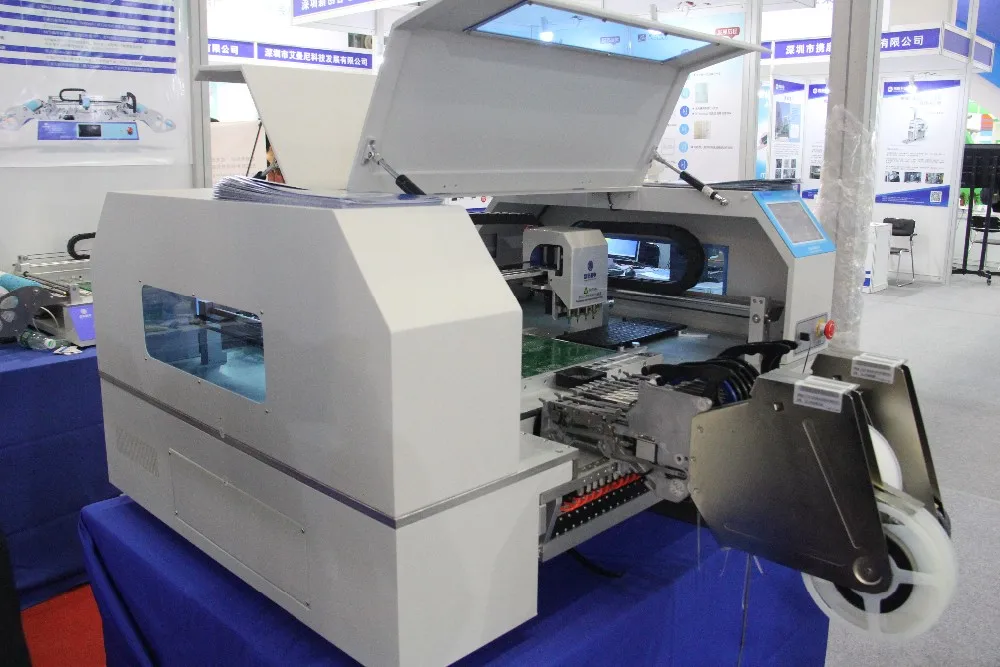

CHARMHIGH  TECHNOLOGY LIMITED ---- EXHIBITION IN CHINA











IMG_0158





stock2

HM-T48VB_16

Note:

This SMT production machines will be 100% tested well before send out.

Tools and manuals are complete included in the package

Good after-sale tech support, support one-to-one online service, please purchase it with confidence.





Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
Each machine 100% test well before ship out.
