Power Consumption(W): DC 5V/ current: 150mA; Color: Black; Video Compression Format: H.264,MJPEG; Supported Operating Systems: Windows Vista,Windows 10,Windows 7,Windows 98,Windows 8,Mac os,Windows XP; Minimum Illumination(Lux): 0.01; Technology: Infrared; IR Distance(m): 10m; Supported Mobile Systems: Android; is_customized: Yes; Sensor: CMOS; TF Card: None; Network Interface: None; High Definition: 1080P(Full-HD); Dimensions (L x W x D)(mm): 41*41mm; Model Number: ELP-USBFHD04H-KL170IR; Viewing Angle (Degree): 170°; Style: Mini Camera; Connectivity: USB; Brand Name: ELP; Type: Video Camera; Power Supply(V): 5V; Lens (mm): fisheye lens; Special Features: H.264 compression; Sensor: 1/3 CMOS AR0330; Resolution: 1920X1080P, 2megapixel; Picture format:: H.264 30fps; USB Protocal: USB2.0 HS/FS, USB1.1 FS; Lens: 170degee fisheye lens; Material : metal case; night vision: with 10 pcs ir leds; Microphone : Support; Ships From: Shenzhen; UVC: Support;



2MP Aptina CMOS AR0330 fisheye lens 1080P H.264 mini ir night vision infrared usb webcam web camera for car radio Android



Package includes:



1) 1PC 2mp H.264 ir usb camera with 170degree fisheye lens

2) 1PC 2m usb cable



Advantage of usb camera:

1)The HD 1080P USB CMOS board camera module(model: ELP-USBFHD04Hserials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.

2)It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.

3)The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.



Feature:

*High Speed 1080P HD USB Camera
*Equiped with wide angle fisheye lens
*Can drive 30fps@1080P
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Specification:

Optional models	ELP-USBFHD04H-KL170IR
Sensor	1/3 CMOS  AR0330
Lens size	200W, 2.0megapixel, 1920(H)x1080(V)pixels
Max. Resolution	1920X1080
Picture format	H.264  ,MJPEG  YUY2
USB Protocal	USB2.0 HS/FS, USB1.1 FS
Support free driver	USB Video Class(UVC)1.1
Auto exposure AEC	Support
Auto white blance AEB	Support
Frame rate	1920 (H) x 1080 (V) pixels  H.264 30fps    MJPEG 30fps     YUY2 5fps     1280 (H) x 720 (V) pixels    H.264 30fps    MJPEG 30fps     YUY2 10fps                                  640 (H) x 480 (V) pixels    H.264 30fps    MJPEG 30fps     YUY2 30fps                              640 (H) x360 (V) pixels     H.264 30fps    MJPEG 30fps     YUY2 10fps     320 (H) x 240 (V) pixels    H.264 30fps    MJPEG 30fps     YUY2 20fps                                  320 (H) x180 (V) pixels     H.264 30fps    MJPEG 30fps     YUY2 30fps
Adjustable parameters	Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision	optional, can choose IR board
view angle	170degree
voltage /current	DC 5V /150mA
Lens	170degree fisheye lens
work temperature	DEGREES(-20~70)
Size	32x32mm/38*38mm
Support OS	WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above



Applications:

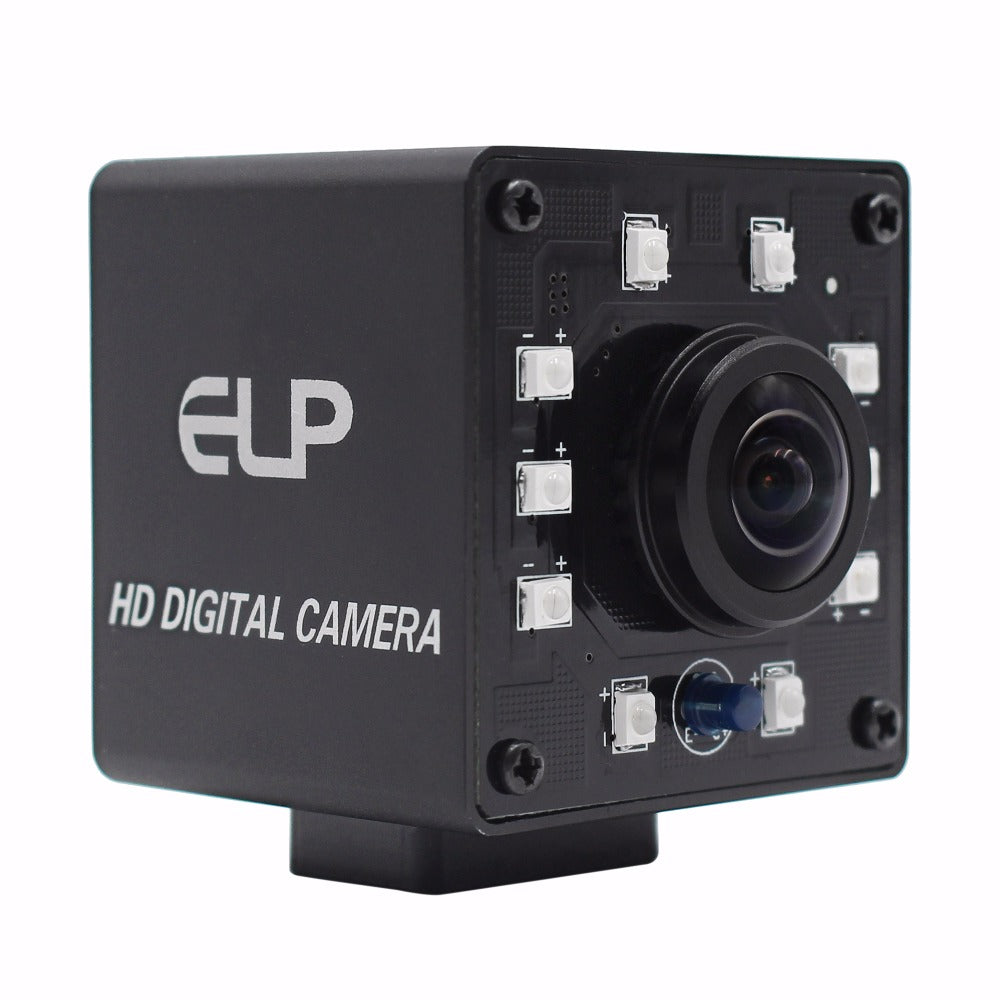

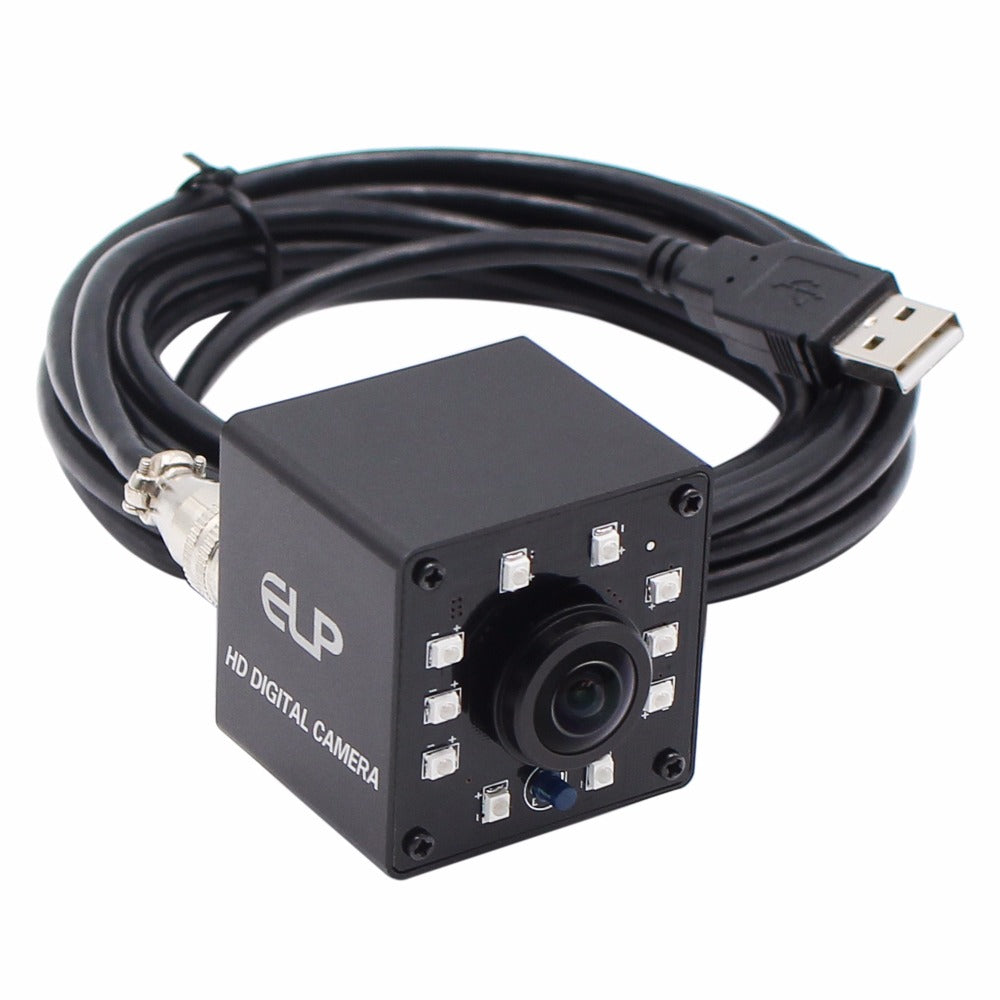

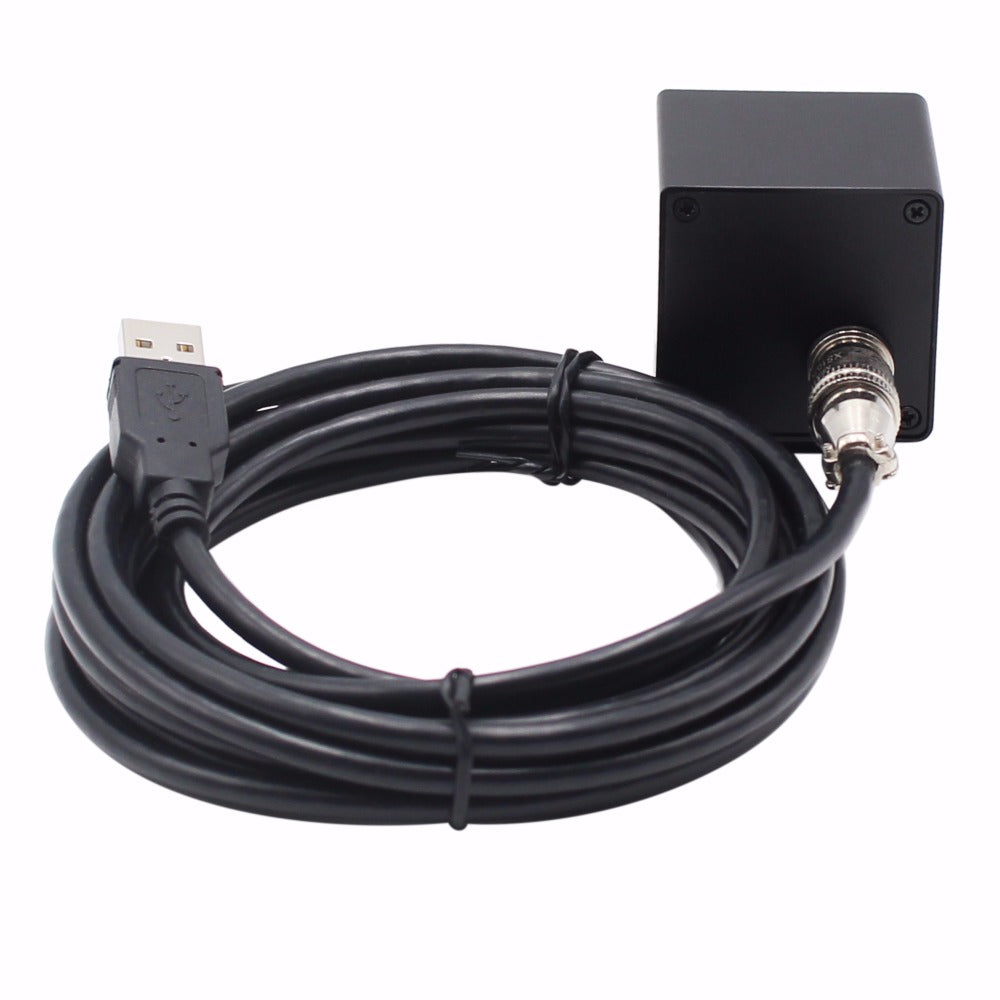

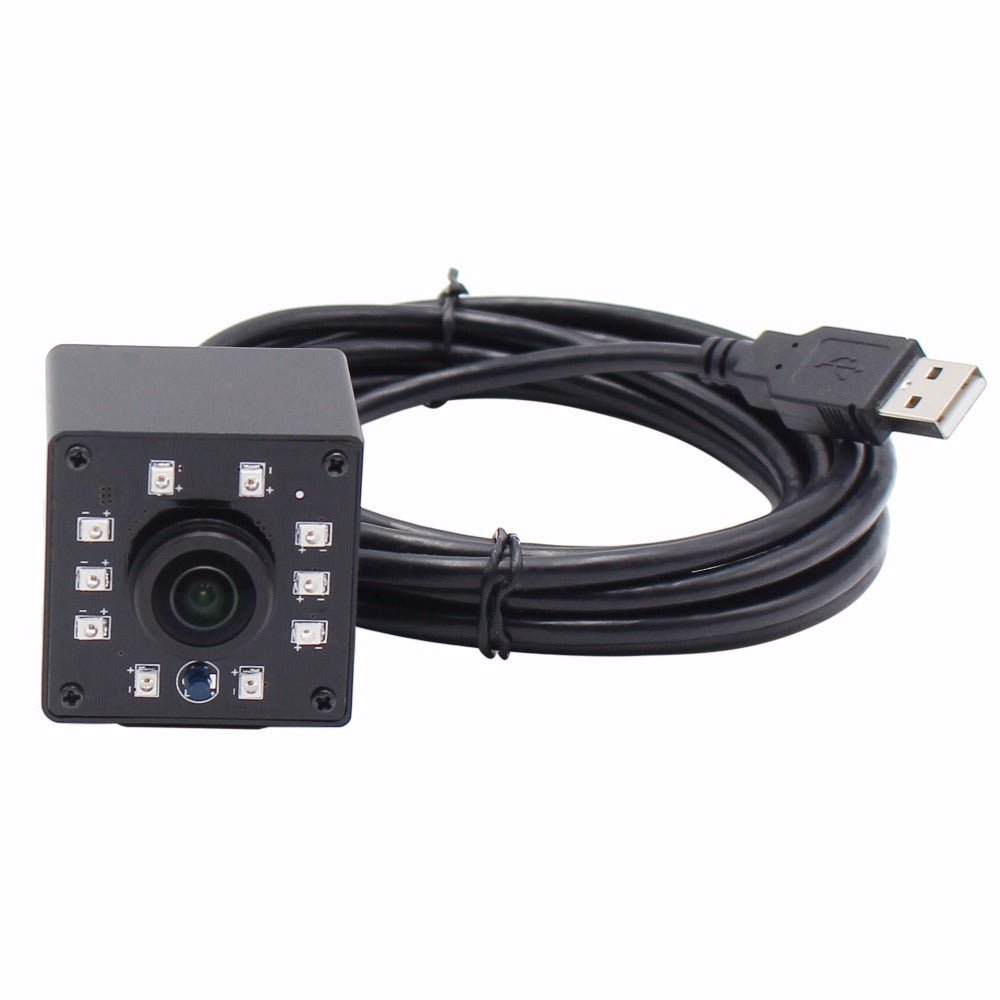

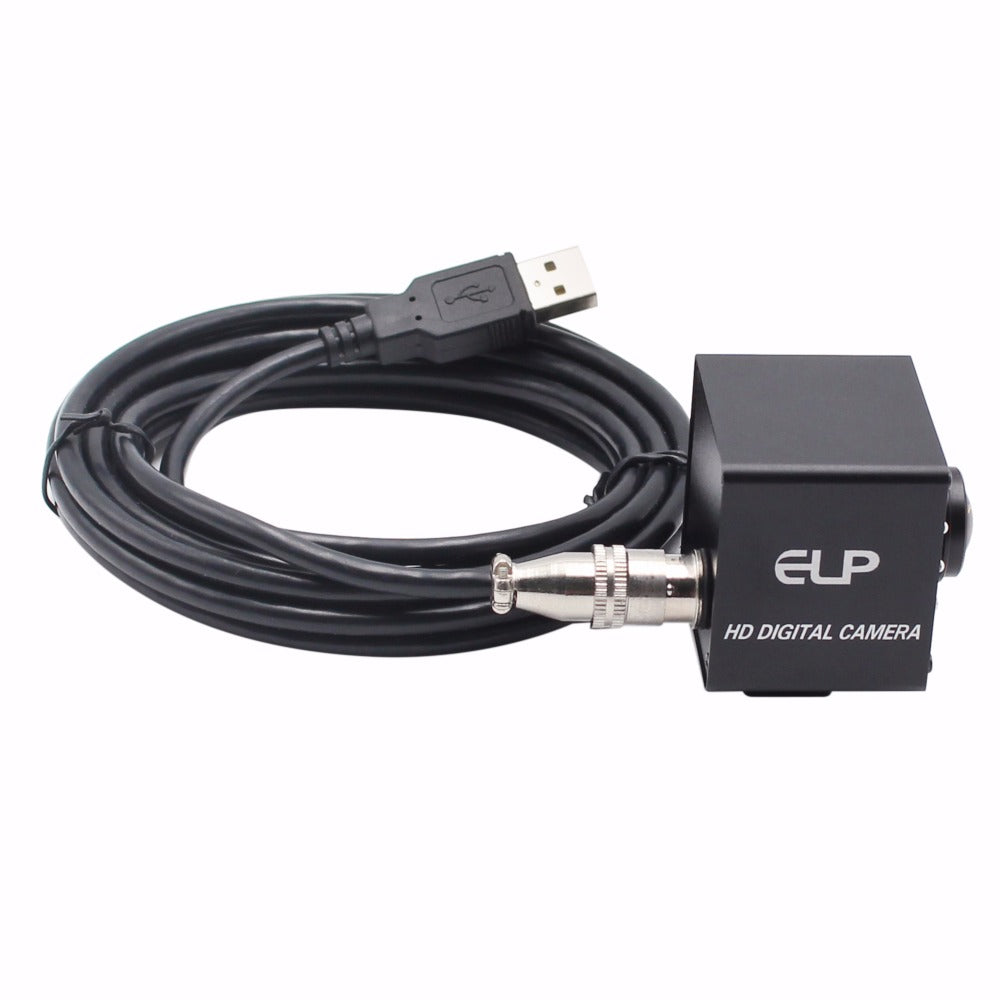

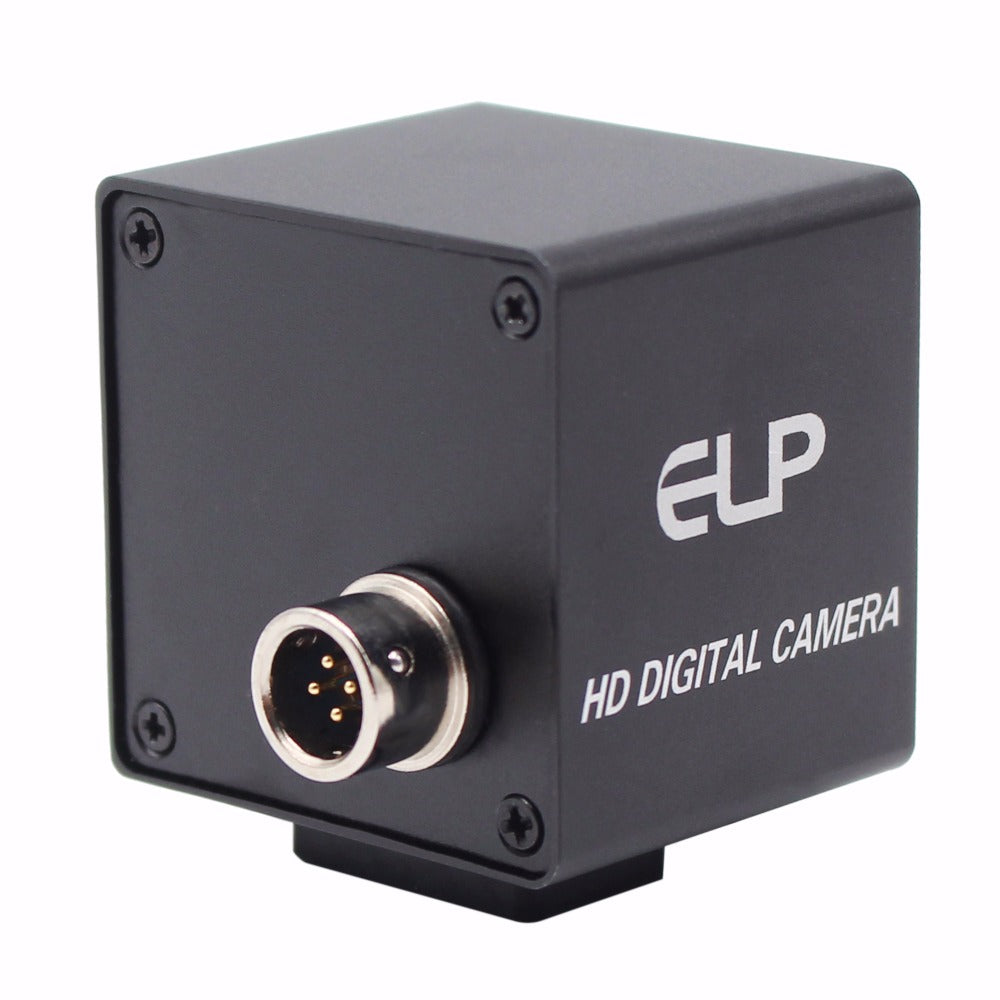

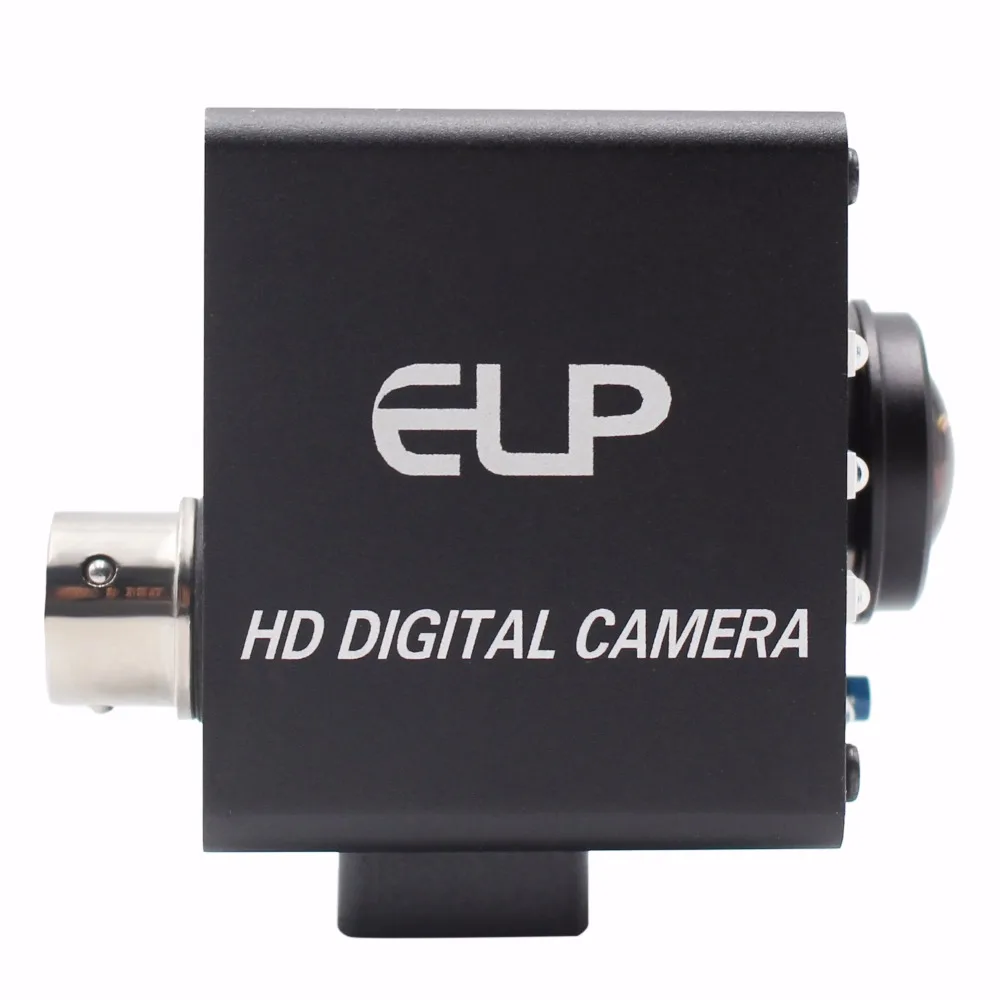

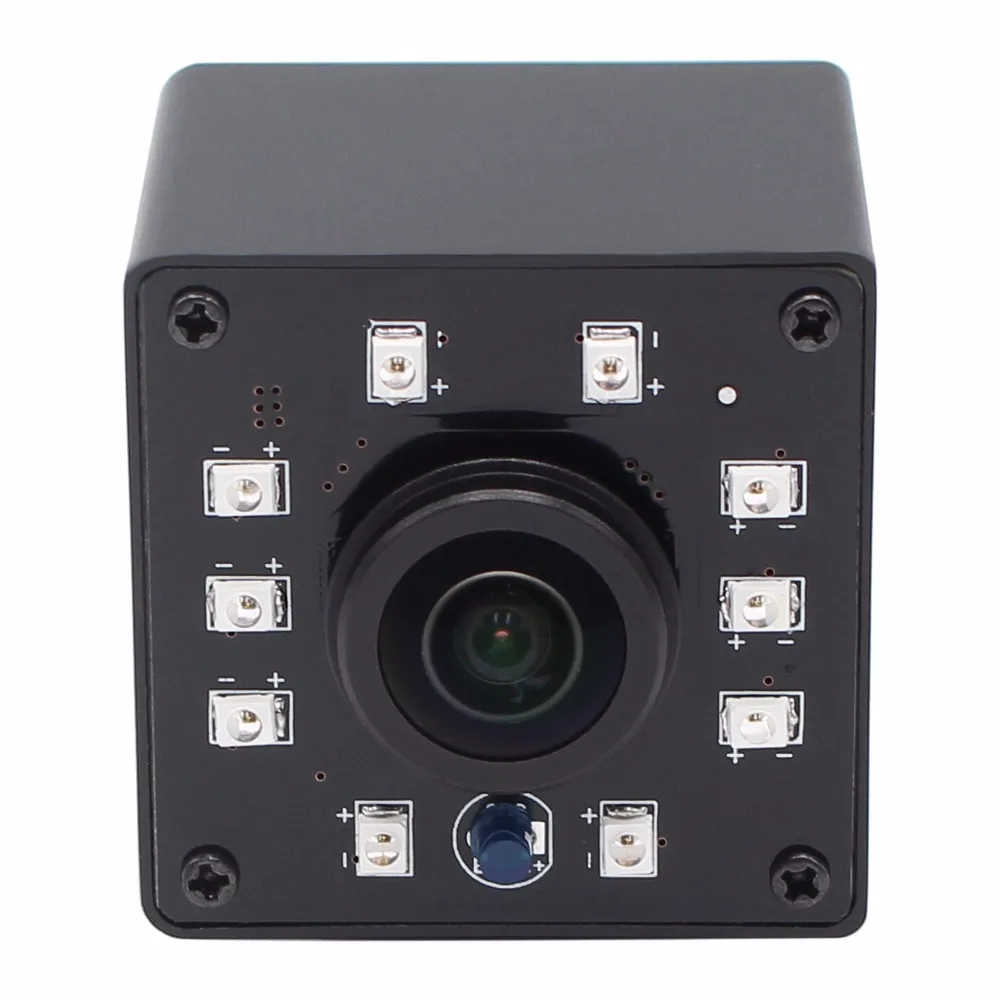

Products display:
