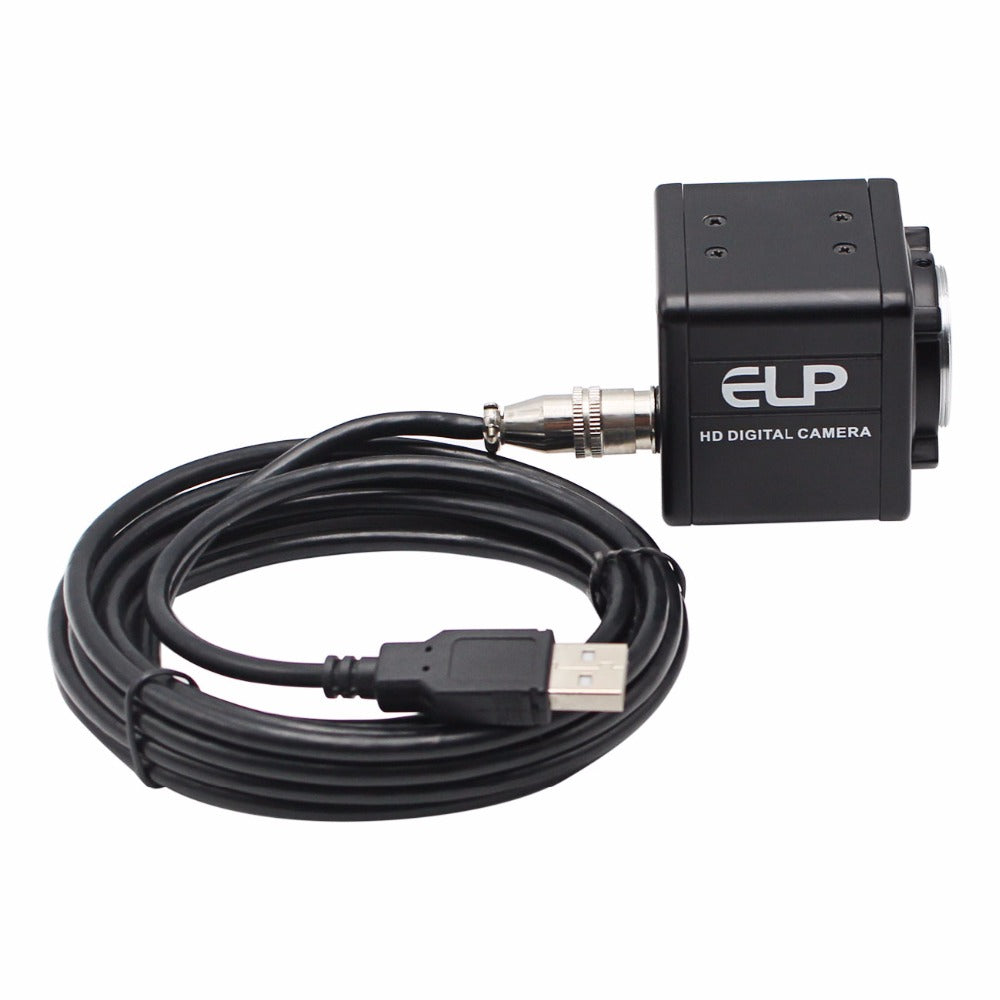

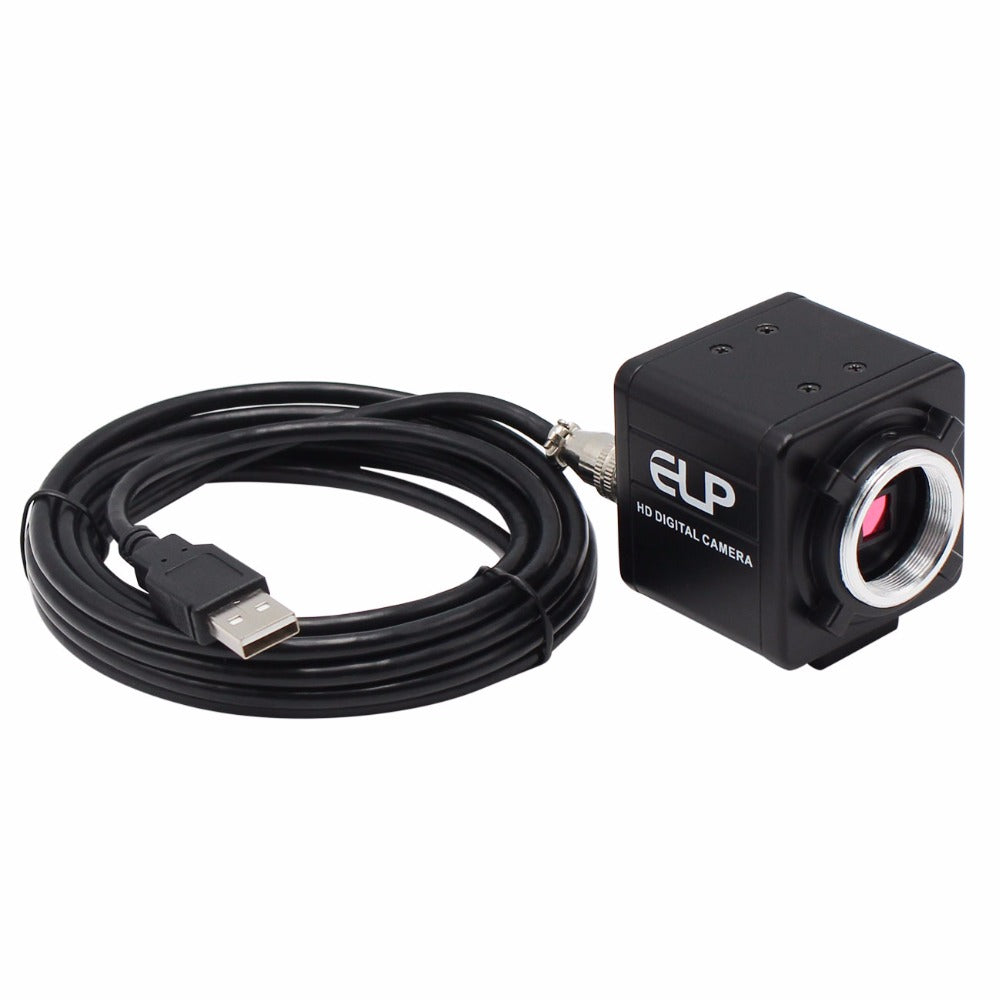

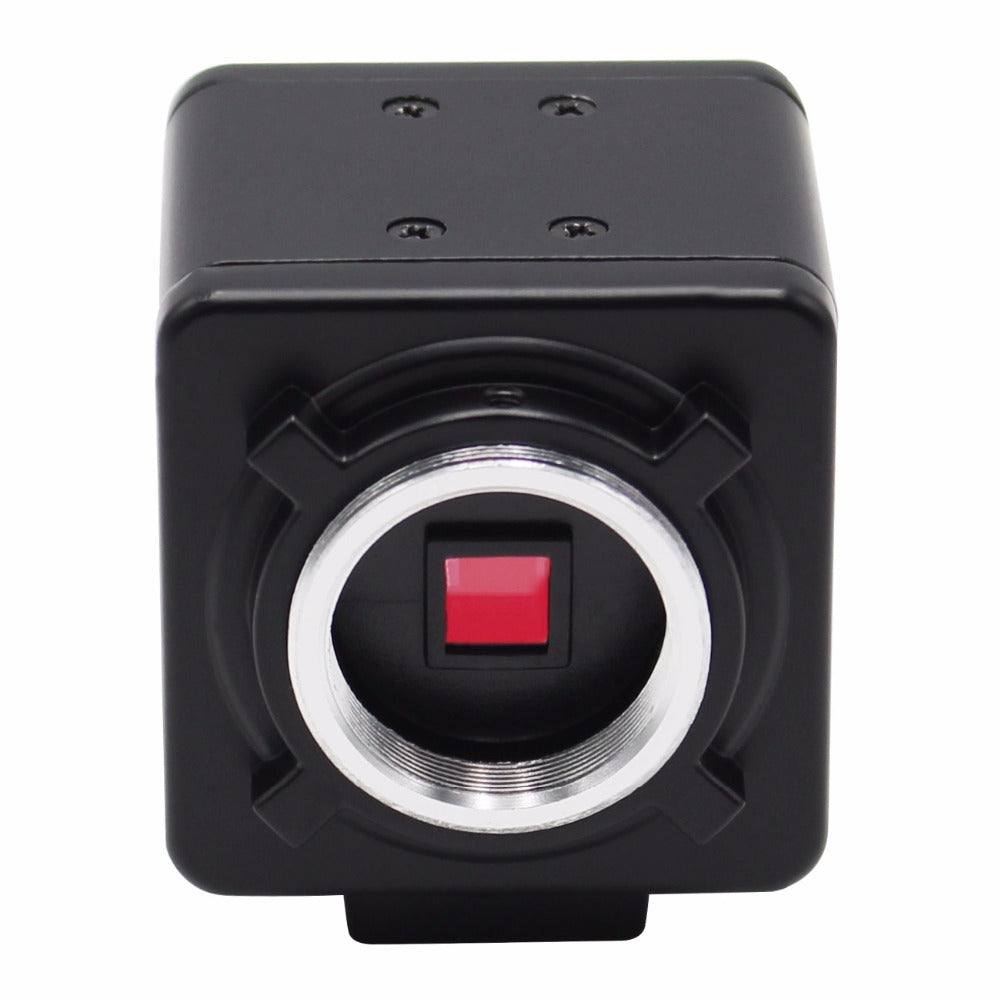

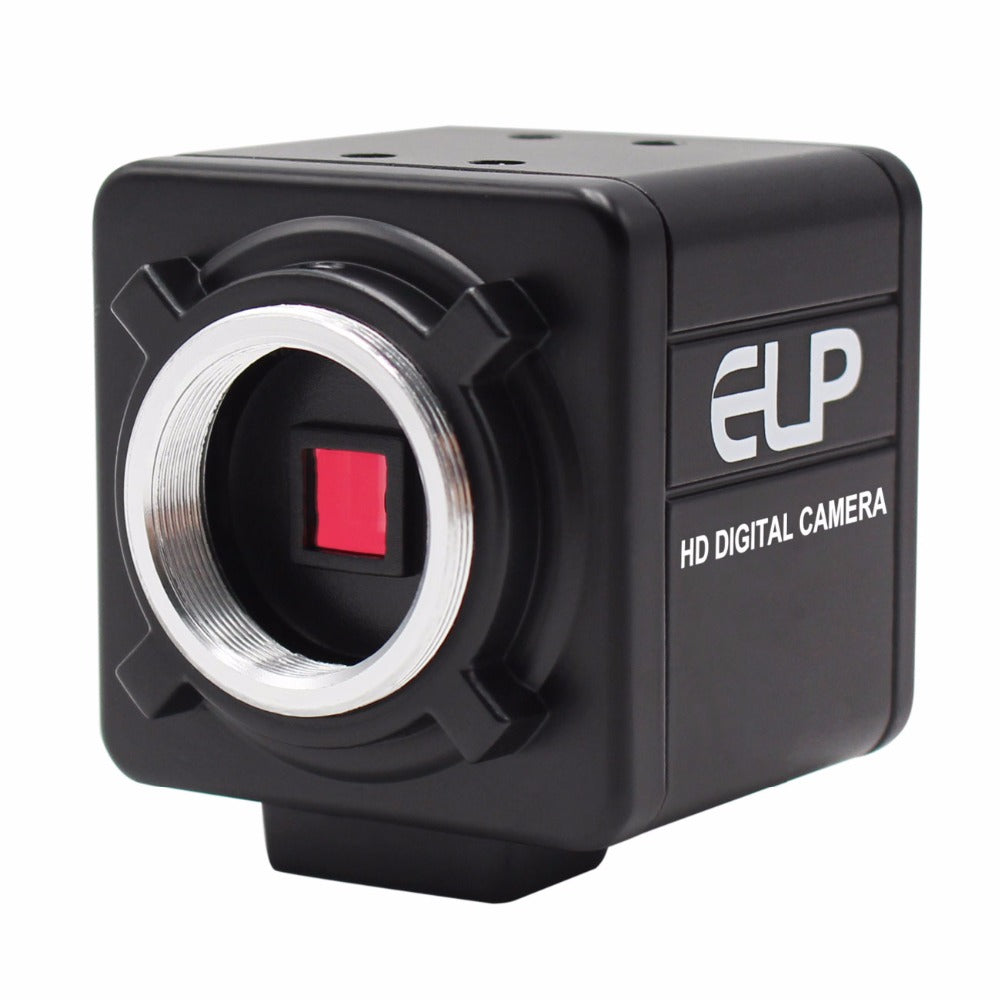

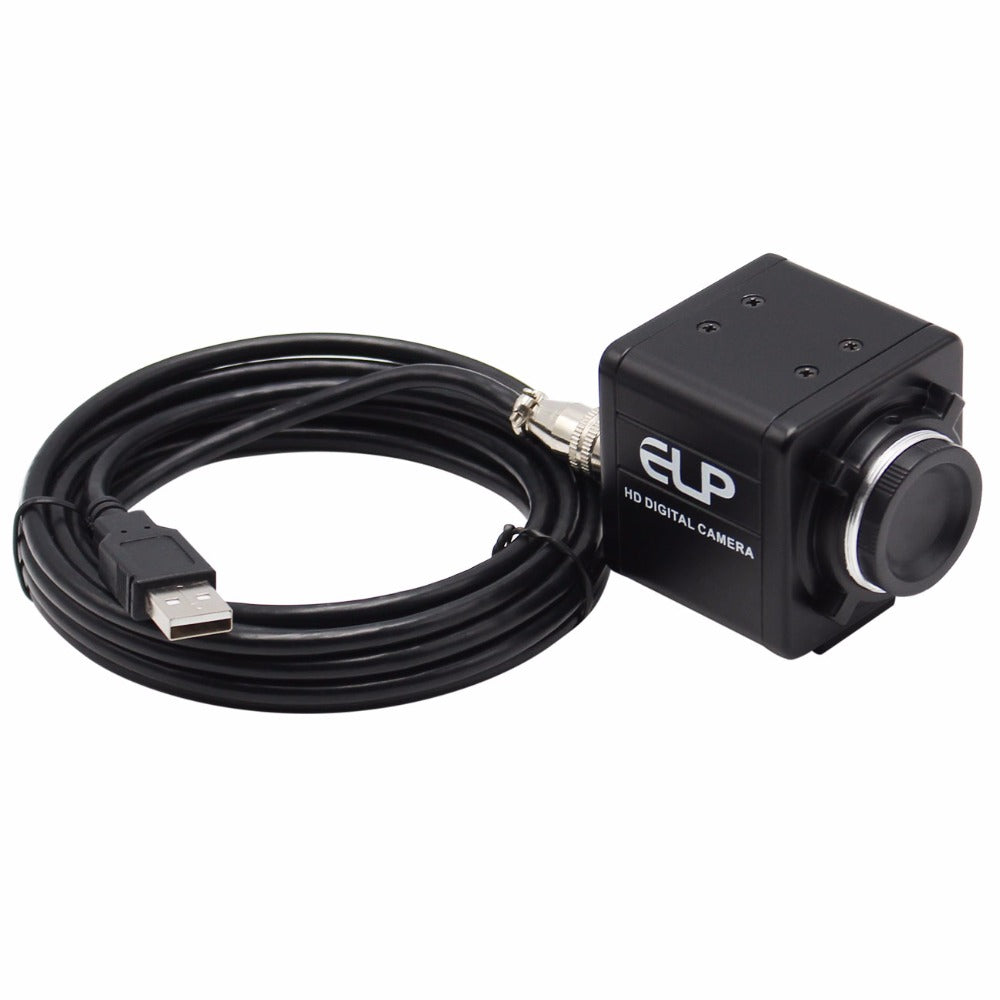

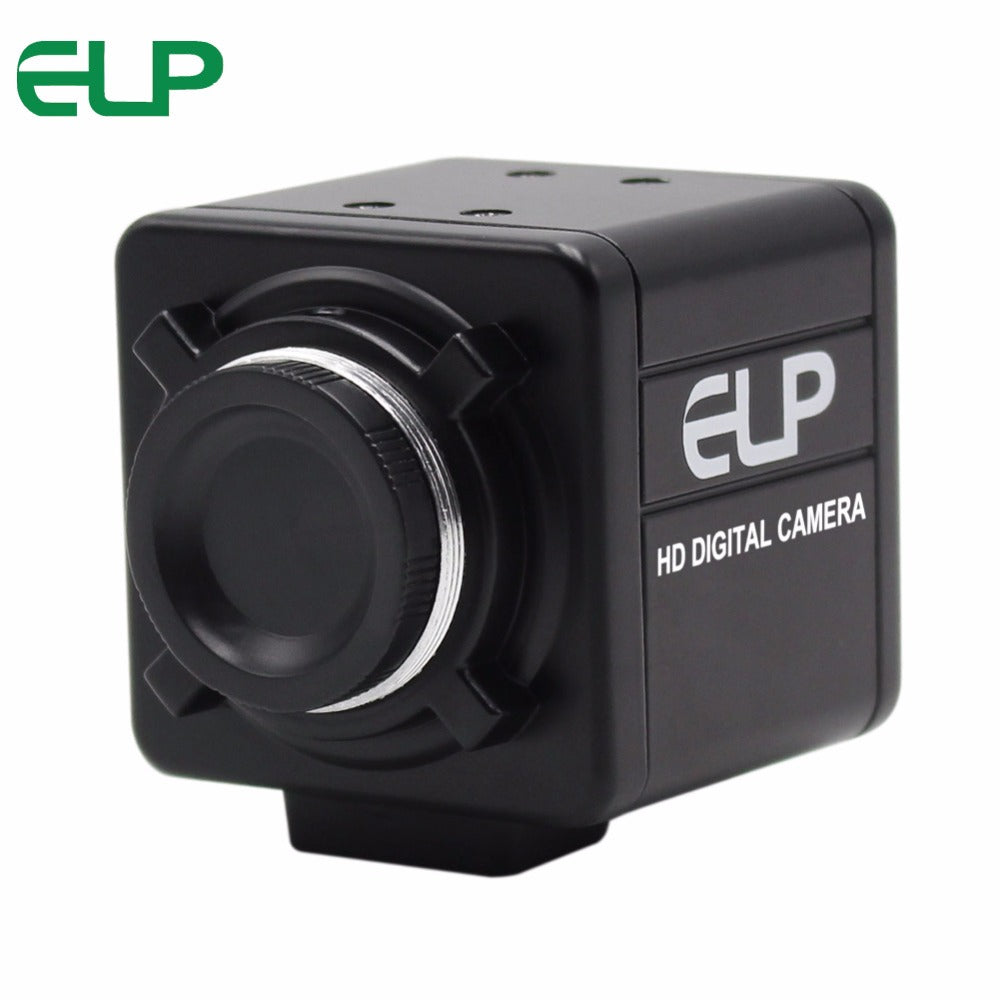

CS Mount 5MP 2592X1944 usb Video Surveillance camera for taxi security
,
CS Mount 5MP 2592X1944 usb Video Surveillance camera for taxi security system
CS Mount 5MP 2592X1944 usb Video Surveillance camera for taxi security system
CS Mount 5MP 2592X1944 usb Video Surveillance camera for taxi security system
CS Mount 5MP 2592X1944 usb Video Surveillance camera for taxi security system
CS Mount 5MP 2592X1944 usb Video Surveillance camera for taxi security system
CS Mount 5MP 2592X1944 usb Video Surveillance camera for taxi security system

CS Mount 5MP 2592X1944 usb Video Surveillance camera for taxi security system

$117.99 $86.99 Sale

Color: Black; High Definition: 5.0 Megapixels; Supported Operating Systems: Windows Vista,Windows 10,Windows 7,Windows 98,Windows 8,Mac os,Windows XP; Style: Box Camera; Installation: Embedded; Supported Mobile Systems: Android; Video Compression Format: MJPEG; IR Distance(m): 0; Sensor: CMOS; is_customized: Yes; Wall Bracket: Side; Storage: None; Sensor Brand: OmniVision; Model Number: ELP-USB500W02M-M; TF Card: None; Network Interface: None; Dimensions (L x W x D)(mm): 40*40MM; Power Supply(V): DC 5V; Connectivity: USB; Minimum Illumination(Lux): 0.5LUX; Brand Name: ELP; Type: Video Camera; Lens (mm): no lens; Audio Output: NO; Technology: Mjpeg and YUY; Special Features: 5mp UVC USB camera; Resolution: 2592X1944; Sensor: OV5640; USB Protocal: USB2.0 HS/FS , USB1.1 FS; board size: 38x38,32x32mm; Auto exposure AEC: Support; Picture format : YUY2 and MJPEG; cable: 3m(1/5m optional); UVC: UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above;

CS Mount 5MP 2592X1944 usb Video Surveillance camera for taxi security system


 Product-description



Package include:

1) 1PC 5mp usb camera without lens

2) 1PC 3m usb cable  ( 1m/5m cable optinal)





features


1) 5mp High resolution , Max resolution 2592x1944

2) Advanced  1/4 OV5640 CMOS image sensor

3) suit for CS Mount lens

4) Support OS:  Win XPWin7Win8AndroidLinux , support raspberry piMac

5) Compression : MJPEG&YUY2.



specification



Optional models

ELP-USB500W02M  usb camera module

 Sensor

1/4" CMOS OV5640

 Lens size

500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels

 Lens

800W  HD Lens

 Max. Resolution

2592X1944

 Picture format

MJPEG

 USB Protocal

USB2.0 HS/FS, USB1.1 FS

 Support free driver

USB Video Class(UVC)1.1

 Auto exposure AEC

Support

 Auto white blance AEB

Support

 Frame rate

2592 (H) x 1944 (V) pixels   MJPEG 15fps      YUY2 3fps
2048 (H) x 1536 (V) pixels   MJPEG 15ps       YUY2 3fps
1600 (H) x 1200 (V) pixels   MJPEG 15fps      YUY2 3fps
1920 (H) x 1080 (V) pixels   MJPEG 15fps      YUY2 3fps
1280 (H) x 1024 (V) pixels   MJPEG 15fps      YUY2 7.5fps
1280 (H) x 720 (V) pixels     MJPEG 30fps      YUY2 7.5fps
1024 (H) x 768 (V) pixels     MJPEG 30fps      YUY2 15fps
800 (H) x 600 (V) pixels      MJPEG 30fps      YUY2 30fps
640 (H) x 480 (V) pixels      MJPEG 30fps      YUY2 30fps
320 (H) x 240 (V) pixels      MJPEG 30fps      YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

30-60 degree optional

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

32x32mm/38*38

Support OS

WinXP/Vista/WIN7/WIN8  Linux with UVC
Mac-OS X 10.4.8 or later   Wince with UVC
Android 4.0 or above



Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.



product-display





IMG_5066IMG_5071IMG_5077IMG_5081IMG_5083IMG_5103IMG_5105



Package



If you need lens, you can check the following picture

2.8-12mm manual varifocus lens



5-50mm manual varifocus lens

5-50mm lens (1)
