GPU: Quad-core Mali-450; System Upgrade: Yes;
Memory: 2G DDR3; OS: Android;
Wireless: Yes; Bluetooth: Yes;
Power: DC 5V,2A; Remote Control: Included;
GOOGLE Cast: Yes; Ethernet: None;
Weight: 178g; Video Output: HDMI 2.0;
OTA Update: Yes; KODI Pre-installed: No;
Internal Storage: 8GB eMMC; IPTV: Yes;
Brand Name: xiaomi; Model Number: Xiaomi Mi Box 3;
CPU: Amolgic Quad core Cortex-A53 up to 2.0GHz; CPU: Amolgic Quad core Cortex-A53 up to 2.0GHz;
GPU: Mali 450 up to 750MHz; System: Android TV 6.0;
Wireless: Wi-Fi: 802.11a/b/g/n/ac, Dual-band; Bluetooth: Bluetooth 4.0/3.0;
Port: HDMI 2.0a x1 (HDCP 2.2), USB 2.0 x1; CVBS/SPDIF Out; Remote: Bluetooth voice remote control;
RAM+ROM : 2GB RAM +8GB ROM; Output Resolution: Up to 4K 60fps;
Freemium from content providers: Support;
Product Model
Global Version Xiaomi Mi TV Box 3 Android 6.0 Smart TV Box Quad Core 4K 8G HDR WIFI Bluetooth IPTV Youtube Netflix Movie Set-top Box
Main Features
- 4K 60fps Video decoding and output
- 4K Support from content providers -- 4K Youtube/Netflix, First 4K Android Device for Vudu and Mgo
- Potential HDR feature
- Voice search and command (traditionally only on very high end TV product)
- Freemium from content providers
- HDMI Cable included
- Processor: Quad-core Cortex-A53 2.0GHz
- GPU: Mali 450 750MHz
- RAM: 2GB DDR3
- Flash: 8GB eMMC
- System: Android TV 6.0
- Wireless connectivity Wi-Fi: Wi-Fi: 802.11a/b/g/n/ac, Dual-band Wi-Fi 2.4GHz/5GHz
- Bluetooth: Bluetooth 4.0/3.0
Product Details

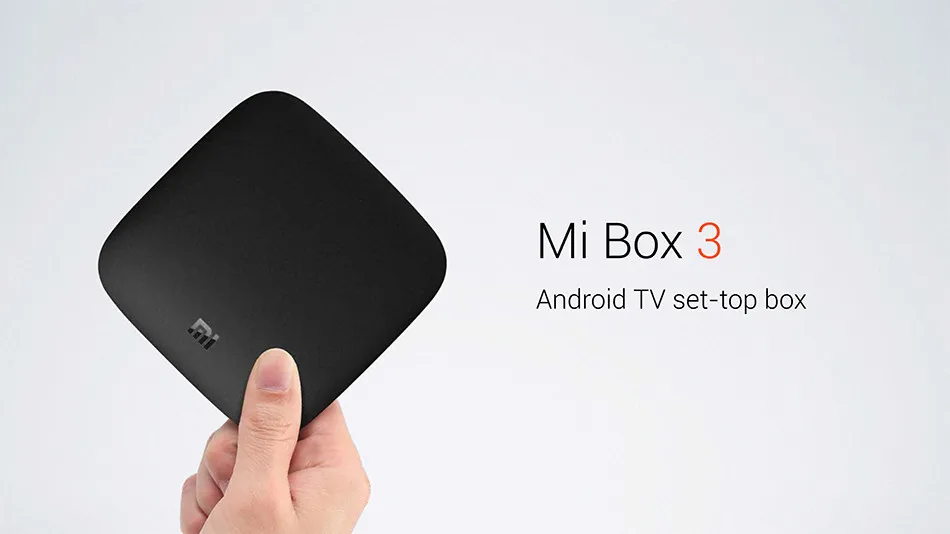

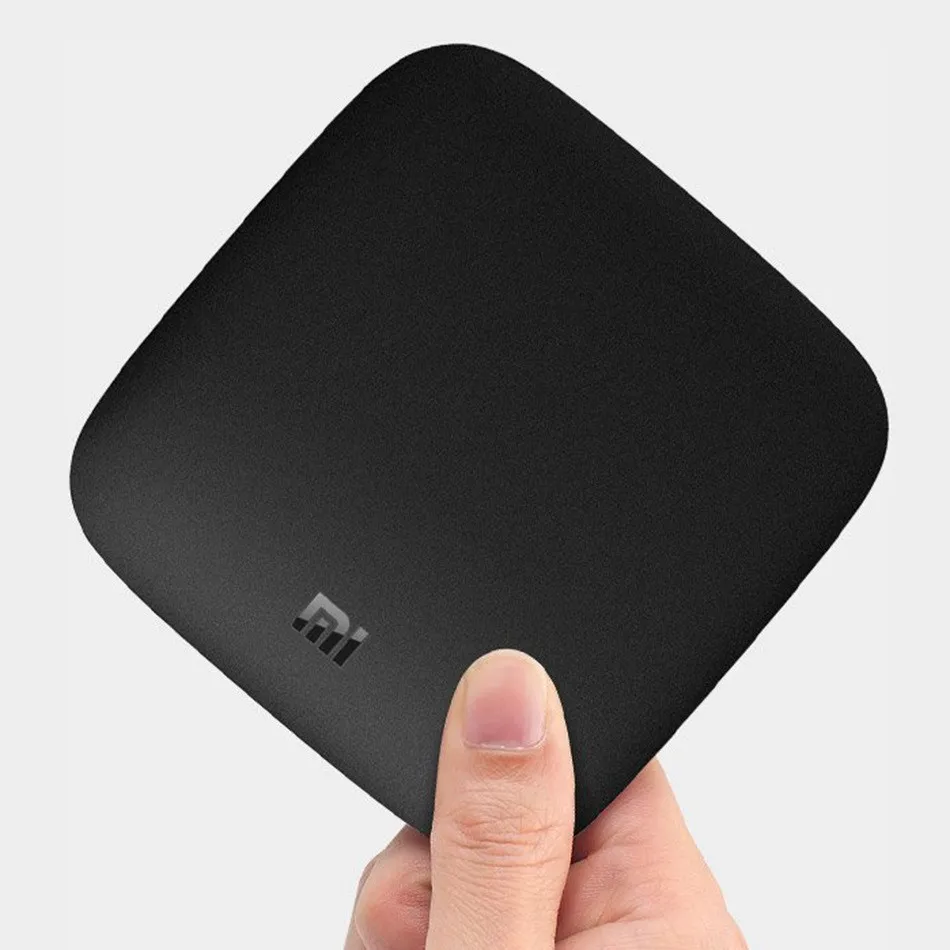

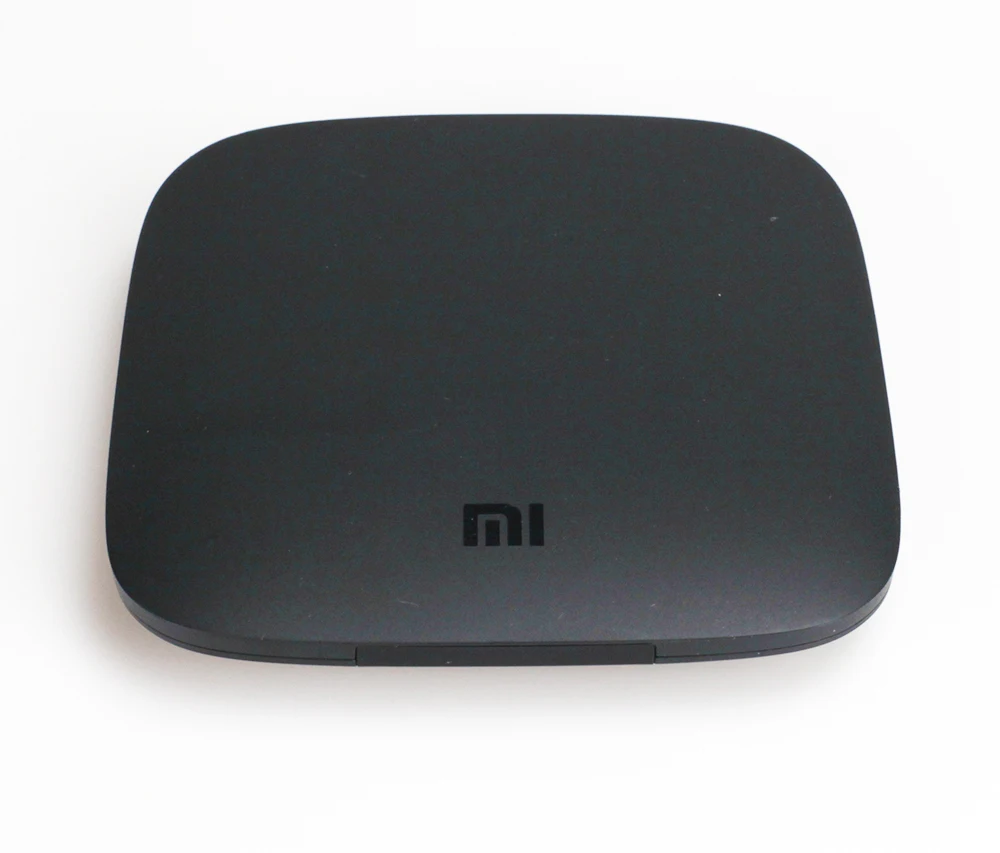

Mi Box 3
HDR video support
4K Android TVTM set-top box
Bluetooth voice remote included

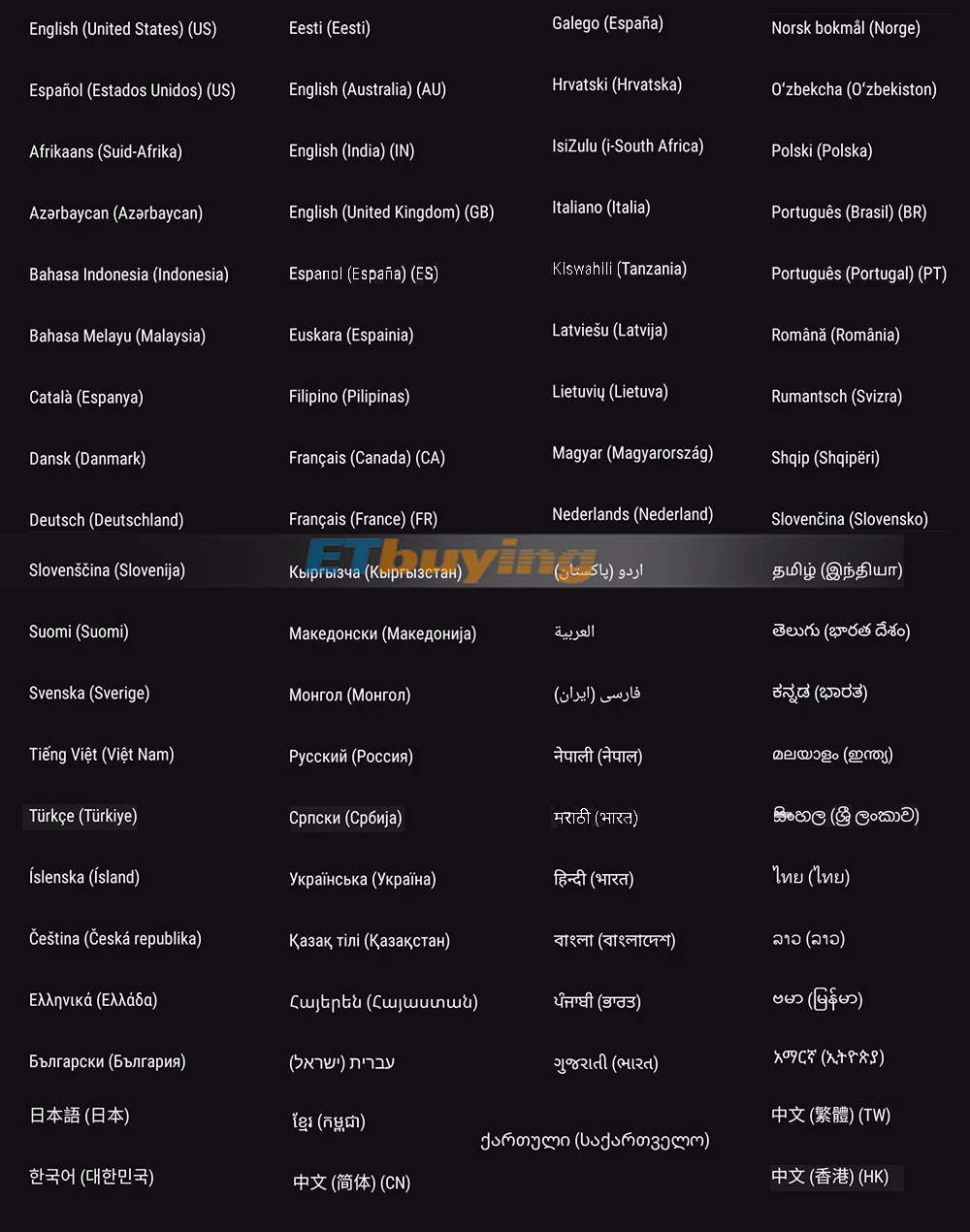

Multilanguage Support
Award winning design
The sleek and innovative Mi Box design has received international acclaim and is the recipient of both
Red Dot and Good Design awards.

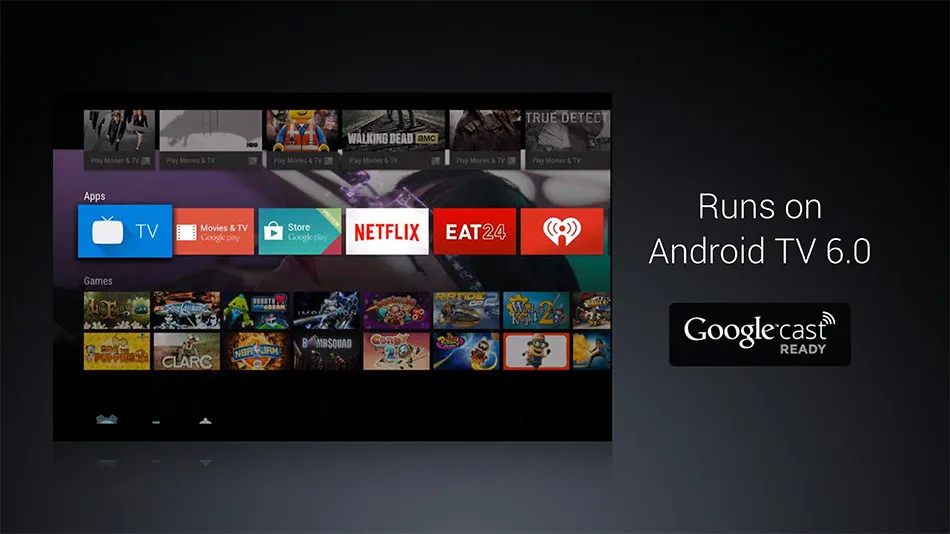

Think out of the box
with Android TV 6.0

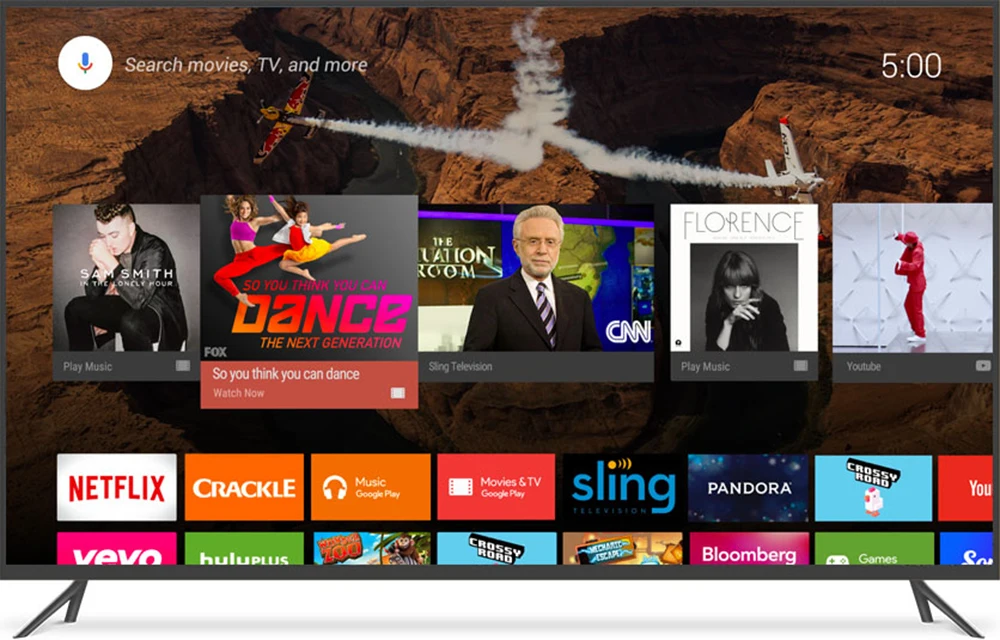

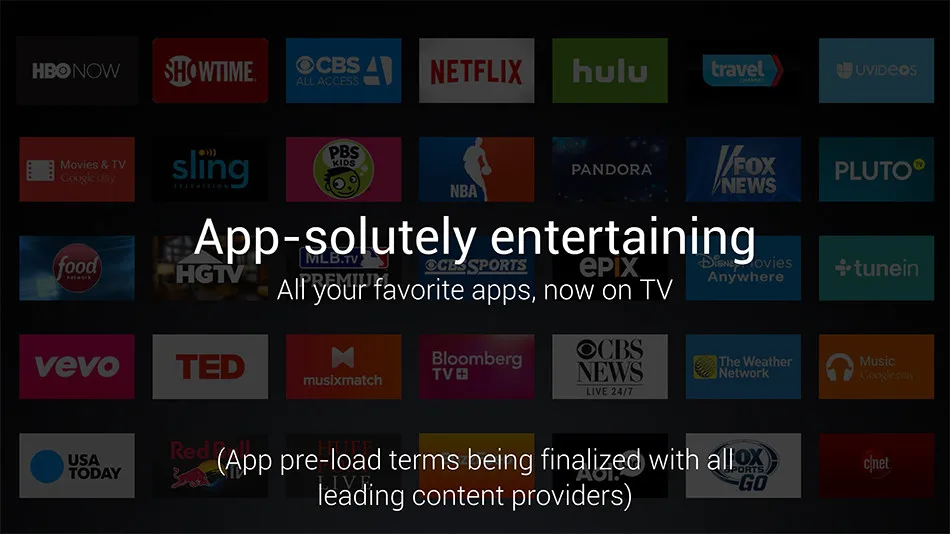

Connect to a world of content and entertainment at home with Mi Box. It runs on the latest Android TV 6.0
which is easy to use, supports voice controls and Google CastTM. Catch your favorite TV shows, play games,
watch the news or switch to radio. Mi Box also recommends videos based on your personal Youtube and
Google Play preferences!
Cast your eyes wider
Go from small screen to big with a single tap. Mi Box has Google Cast built in which let you can stream shows,
movies, music and more from your phone, tablet or laptop on your TV

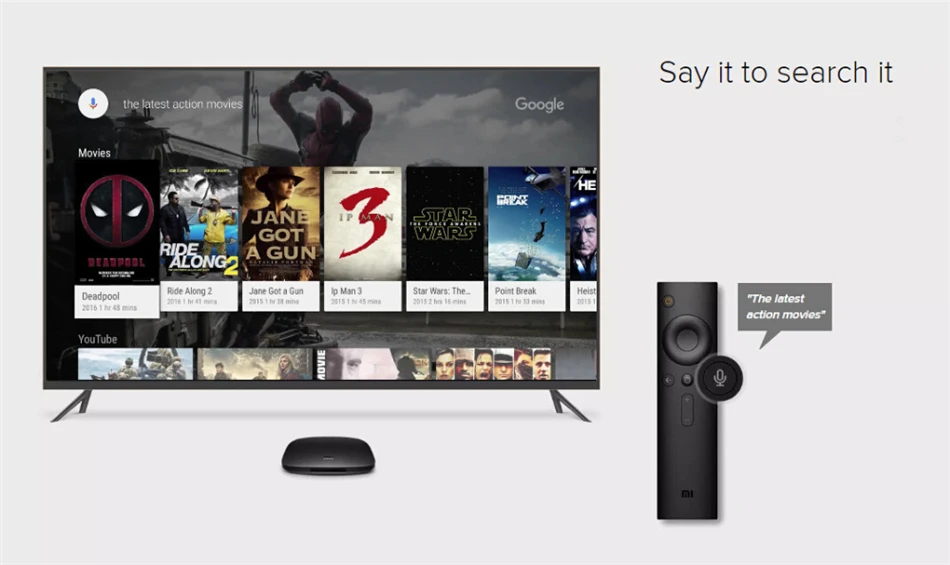

Say it to search it
A TV that listens. All you have to do is ask.
Speak into the voice remote control and Mi Boxsearches for
what you want. Ask for the best in action movies, today's weather, or the latest celebrity news!
Everything Pops With HDR
HDR is making its way to TV and the Xiaomi Mi Box.
Enjoy videos inhigh definition likenever before with selectHDR content,and
watch scenes and characters come to life in vivid color and clarity.Requires HDR TV and HDR-enabled video content.
Super smooth streaming, 60fps 4K decoding
A powerful video decoder is like having a high performance processor. Mi Box can handle up to 60 frames
per second - that's double what other set-top boxes can do. It's an advantage you'll notice naturally when
you watch NBA live or play a racing game.

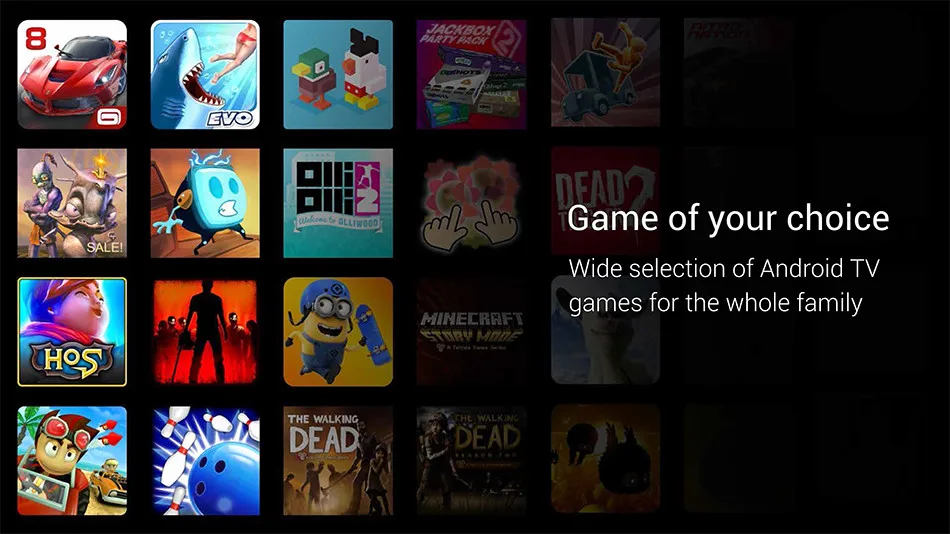

Box got game
Housed within Mi Box is a high performance
CPU and GPU to manage a to keep you entertained.
Pair with a bluetooth gamepad, and have friends over. It's time to get your game on!
Mi Game Controller
Pair with Mi Box for a realistic gaming experience. Dual-motor vibration feedback and a 3-axis
G sensor deliver precise shocks and better control. Comes with 365-day standby battery and
an ergonomic design so you can game for hours in comfort.
DTS and Dolby surround sound
Mi Box supports both Dolby Digital Plus and DTS multichannel HD audio encoding.
The result is smoother, dynamic, immersive and more realistic stereo surround
sound during ultra HD Blu-ray video playback.
More Real Pictures
Specifications
| Brand |
XIAOMI |
| Model |
M12 (MiBox Global verison) |
| Output Resolution |
Up to 4K 60fps |
|
Hardware
|
CPU: Amolgic Quad core Cortex-A53 up to 2.0GHz GPU: Mali 450 up tp 750MHz RAM: 2GB DDR3 eMMC: 8GB |
| System |
Android TV 6.0 |
| Security |
Widevine L1 + PlayReady 2.5 or 3.0 |
| Wireless |
Wi-Fi: 802.11a/b/g/n/ac, Dual-band Wi-Fi 2.4GHz/5GHz Bluetooth: Bluetooth 4.0/3.0 |
| Video |

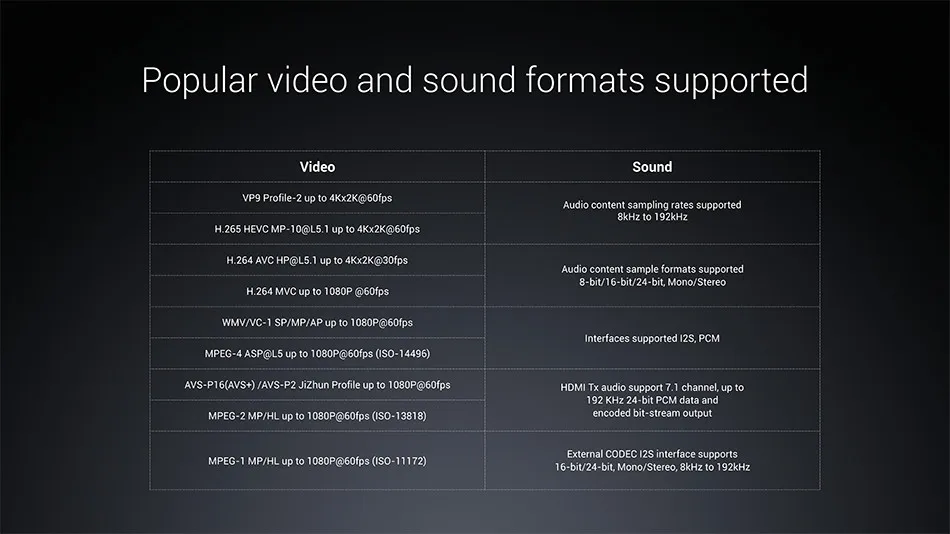

VP9 Profile-2 up to 4Kx2K at 60fps H.265 HEVC MP-10 at L5.1 up to 4Kx2K at 60fps H.264 AVC HP at L5.1 up to 4Kx2K at 30fps H.264 MVC up to 1080P at 60fps Supports HDR10/HLG HDR processing |
| Sound |
Audio content sampling rates supported: 8kHz to 192kHz Audio content sample formats supported: 8-bit/16-bit/24-bit, Mono/Stereo Interfaces supported: I2S, PCM HDMI Tx audio support 7.1 channel, up to 192 KHz 24-bit PCM data and encoded bit-stream output. External CODEC I2S interface supports 16-bit/24-bit, Mono/Stereo, 8kHz to 192kHz |

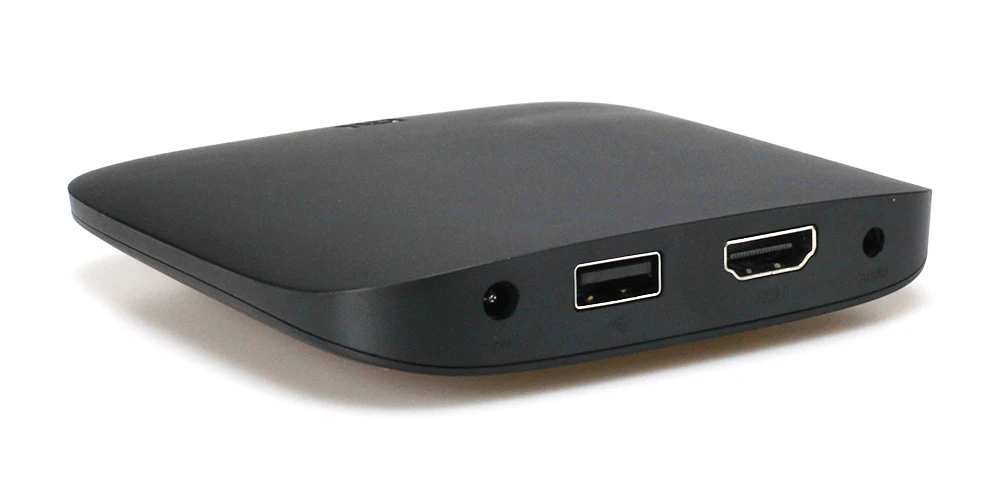

| Port |

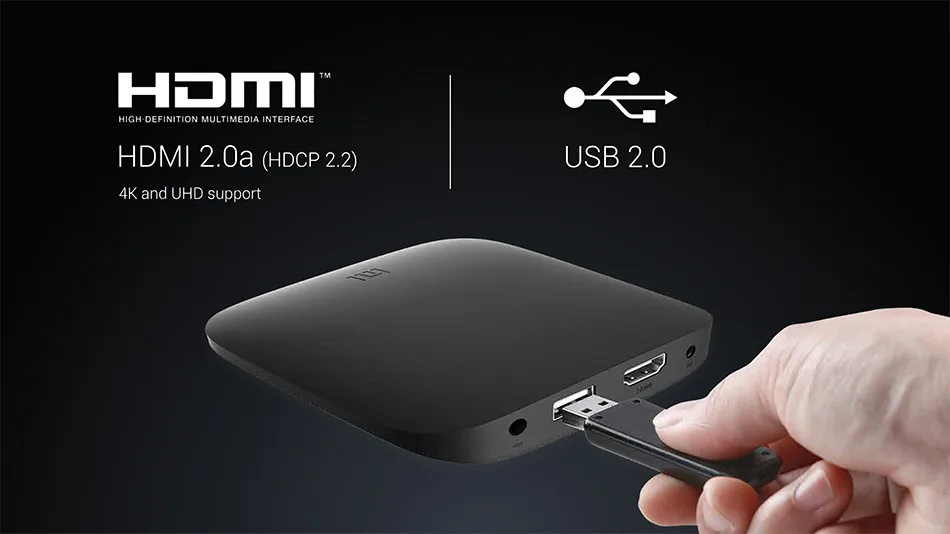

HDMI 2.0a x1 (HDCP 2.2), USB 2.0 x1; CVBS/SPDIF Out |
| Other |
Remote: Bluetooth voice remote control, powered by 2 AAA batteries Power input: 100~240V 50/60Hz input, 5.2V, 2.1A output |
| Color |
Black |
| Included accessories |
1 X Bluetooth voice remote control 1 X HDMI cable 1 X User guide |

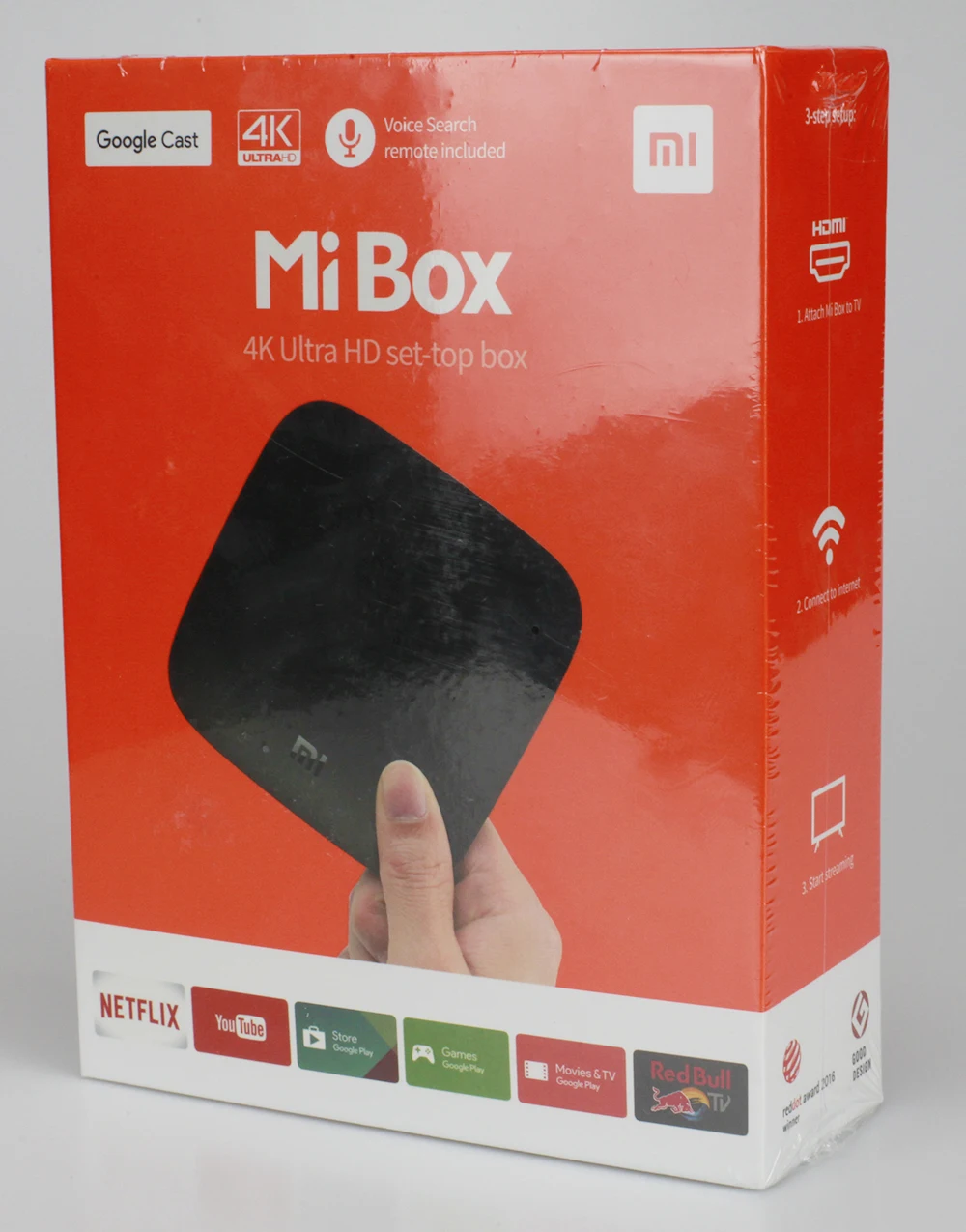

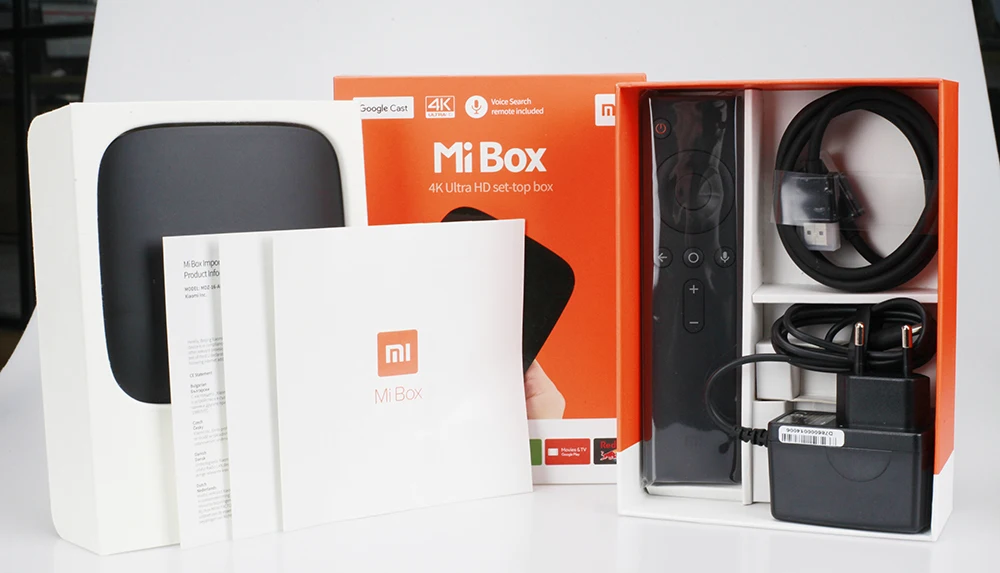

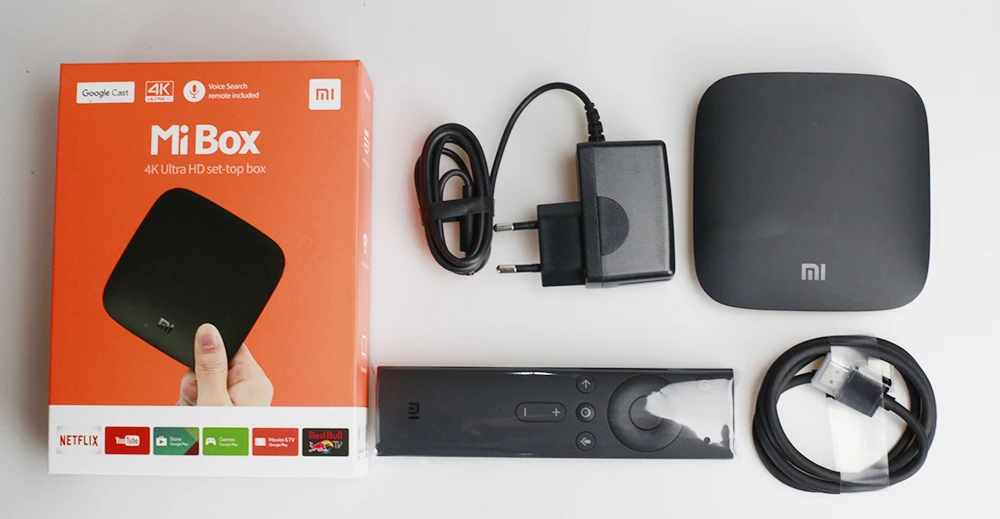

What's in the box
- 1 X Original xiaomi Mi Box 4K Android TV Box
- 1 X Bluetooth voice remote control
- 1 X HDMI cable
- 1 X User guide
MI BOX FAQ
HOW TO CLEAR APP DATA OR CLOSE BACKGROUND APPS?
Go to “Settings”>>”Device”>>”Apps”, tap on the target app and choose “Clear data”or “Force stop”.

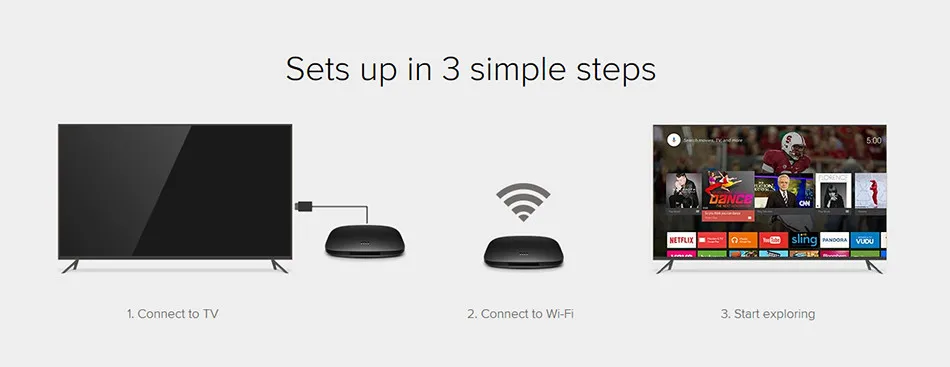

WHAT ARE THE STEPS FOR BOOTING MI BOX?
1) Connect the TV set and Mi Box with standard HDMI
2) Plug in to the power supply,the white indicator in front will be bright, then the Mi Box will power on automatically
3) Connect to the Wi-Fi as the initial boot guide
WHAT IS THE EFFECTIVE DISTANCE OF MI BOX BLUETOOTH REMOTE CONTROLLER?
Within 10 meters without interference.
HOW TO USE VOICE SEARCHING?
User can ask Mi Box to search the action movies, today's weather, or the latest celebrity news on any screen. As pressing the voice button as speaking into the voice remote control, then Mi Box will search for what you want.
IS MI BOX CONNECTED TO CHINA SERVERS TO UPDATE SYSTEM?
No, for overseas users, their Mi Box system update is connected to Google Server.
WHAT IS THE PROVIDER OF MI BOX VOICE SERVICE?
Google.
WHAT TO DO IF THERE IS A PROBLEM OF PRELOADED APP?
Firstly, please confirm the issue occurs on single App or all apps.
1) If it occurs on single app, re-try the app or contact app provider.
2) If it occurs on all apps, try to check the networks, Google accounts, re-try the apps and reboot the Mi box.
WHAT TO DO IF MI BOX FAILS TO SEARCH THE WI-FI ?
1) Cut off the power and re-plug then reboot the Mi Box.
2) Try to search and connect to the hotspot created by phone. If the Mi Box is ok with the hotspot, please reset the router. If the Mi Box is not working with the hotspot, please:
a) update the Mi Box system
b) Reset the Mi Box(On your screen,go to “Settings”>>”Device”>>”Storage & reset”>>”Factory data reset”)
3) If above steps fail, please contact after-sales.
WHAT TO DO IF MI BOX FAILS TO CONNECT MY BLUETOOTH DEVICES?
Android TV system supports bluetooth pairing with any bluetooth devices except phones. If you experience problem to pair both devices, please reboot and try again.
WHAT TO DO IF THERE IS AUDIO ISSUE WITH MI BOX?
The audio signal is transmitted from Mi Box to TV directly via HDMI cable. If you experience “No sound” or “Noise” in the background, please check whether the HDMI cable is properly attached to both Mi Box and TV.
HOW DO I RESET THE MI BOX?
Go to “Settings”, select and click on “Storage & reset” menu.
HOW DO I USE GOOGLE CAST WITH MI BOX?
1) Cast devices and Mi Box must be connected with the same Wifi network.
2) Launch any app which support Cast function, e.g. Youtube.
3) Press on “Cast” button on the video.
HOW DO I GET UPDATES TO THE SOFTWARE?
Go to “Settings”, select “About” and click on “System update”
