6-14m 200kg 500kg cheap price hydraulic battery power mini small electric scissor lift with CE ISO certification
1.Products advantages
Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward,turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency
2.Moving method
The chargeable battery provides the power to move and steer around.
3. Lifting Power
The chargeable battery provides the power to raise up the lift platforms.
Working heights rangs from 4m,6m,8m,9m,10m,12m,14m.
4. Applications
It is widely used for aerial installation and maintenance of the working sites without power supply and
with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, warehouse,
granary,bus/railway stations, hotels,airports, gas station and aerial pipeline.
| Model | SJYZ06 | SJYZ08 | SJYZ10 | SJYZ12 |
| Working Height | 8m | 10m | 12m | 14m |
| Platform Height | 6m | 8m | 10m | 12m |
| Platform Size | 2.27x1.12m | 2.27x1.12m | 2.27x1.12m | 2.27x1.12m |
| Lift Capacity | 300kg | 300kg | 300kg | 300kg |
| Weight | 1850kg | 2250kg | 2500kg | 2800kg |
| Overall Dimension (L*W*H) |
2.48x1.15x2.18m | 2.48x1.15x2.34m | 2.48x1.15x2.48m | 2.48x1.15x2.59m |
| Lift-Up | 30s | 37s | 45s | 50s |
| Lift-Down | 30s | 32s | 35s | 38s |
| Gradeability | 25% | 25% | 25% | 25% |
| Maximum Tilt | 3° | 3° | 3° | 3° |
| Battery | 4x6V | 4x6V | 4x6V | 4x6V |
| Product presentation |
Small scissor lift is widely used to workshop building site, hotel, airport, station, dock and so on. Mainly used to installing, repairing and cleaning high aerial equipment,power equipment, overhead pipeline and so on. It is an ideal equipment for guaranteeing working safe,improving working efficiency and making aerial working, more convenient and quick. |
| Security assurance |
1. Control voltage is DC24V.Keeping working person safe. 3. Installing Emergency button,Can keeping working person safe. 5. System have Emergency drop valve,which can let platform down safely. |
| Main features |
This type scissor lift own automatic walking function.It can be used in different working condition,and do not need external power supply and artificial traction.It is mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk. It's easily moved with high working efficiency.This type scissor lift can be move while extended and controlled from platform by the operator.It is walking,reversing, turning and lifting can be achieved on the platform board, self-movement at a the full height.Low noise allows the operation personnel work in a silent environment and the large-angle steering system provides a good maneuverability. |

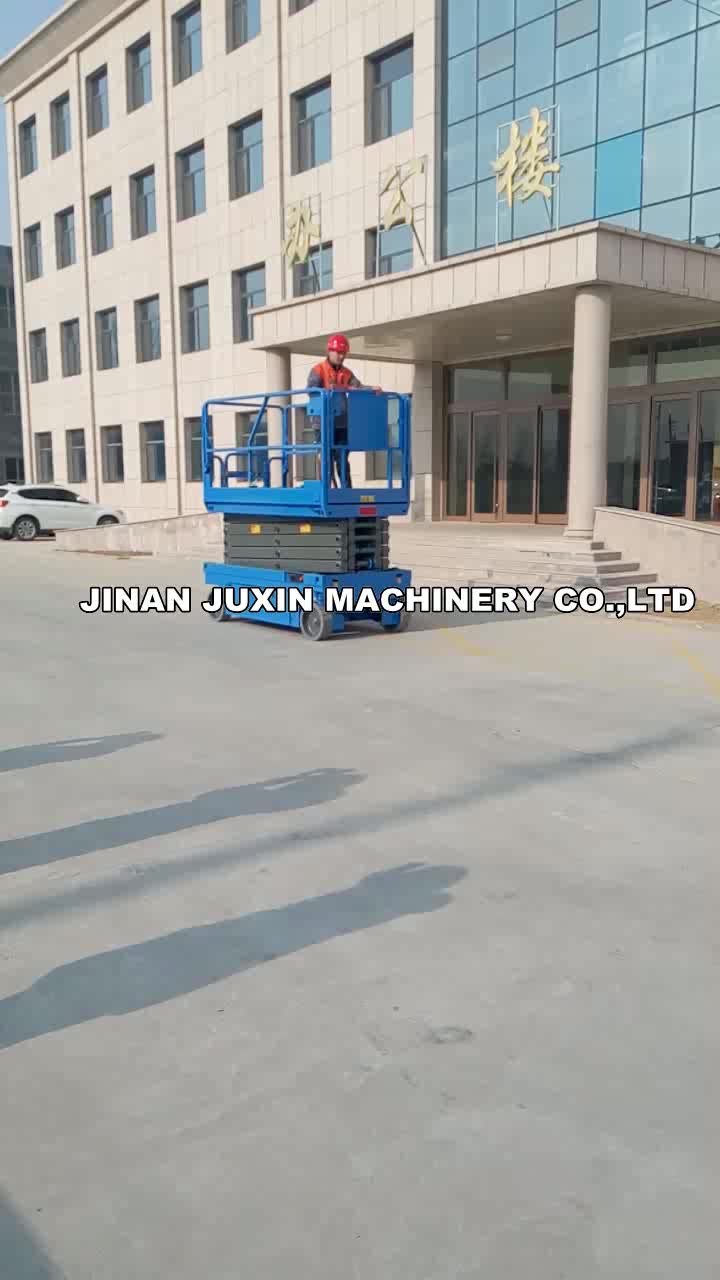

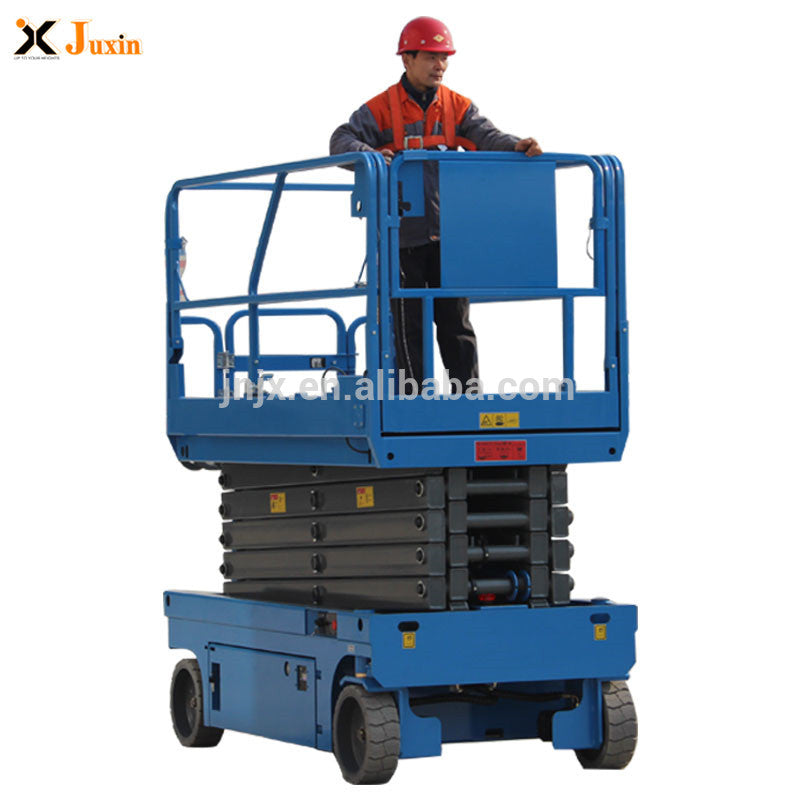

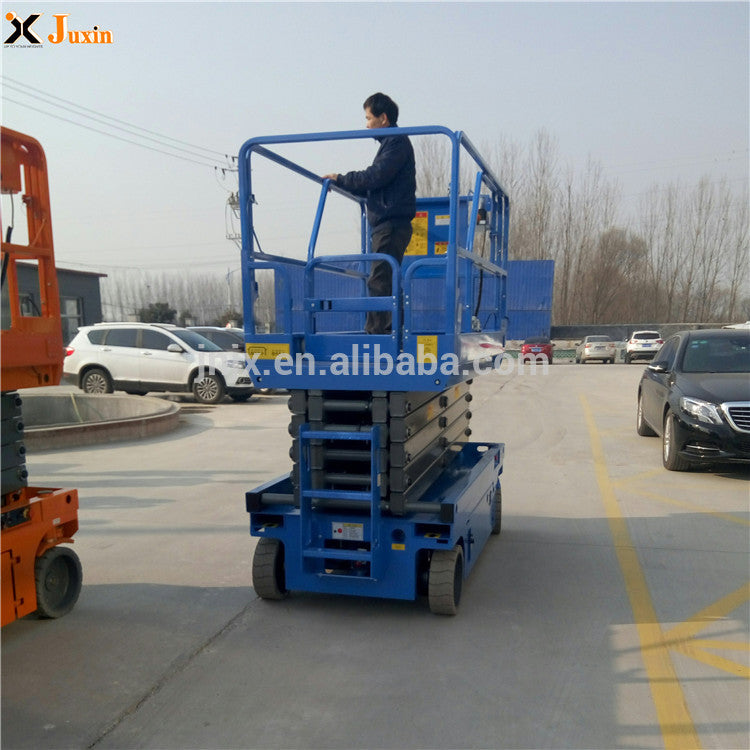

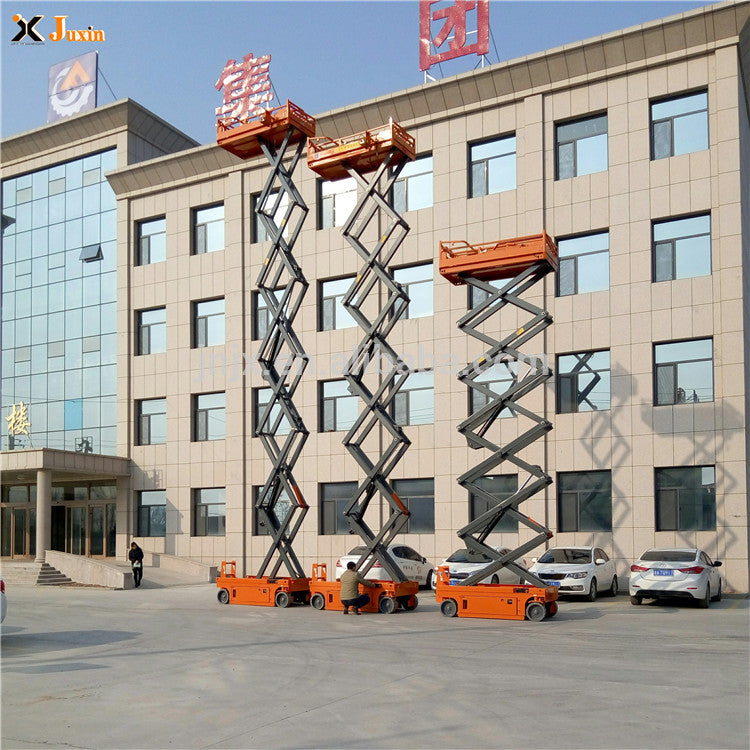

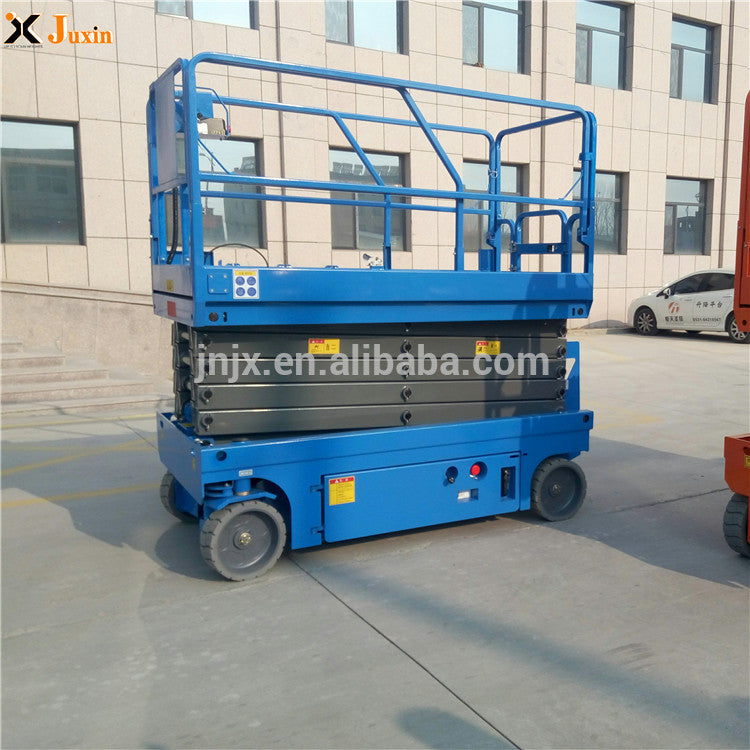

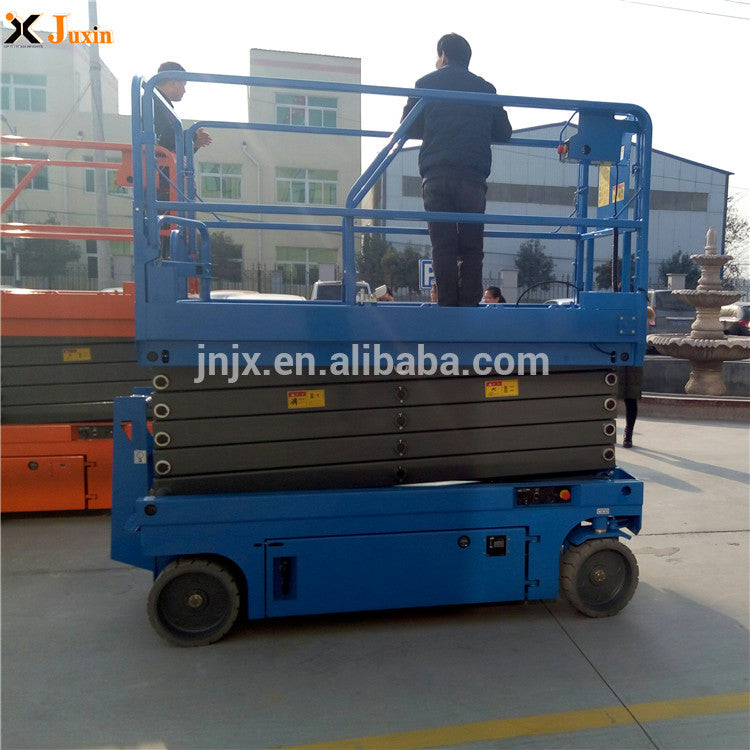

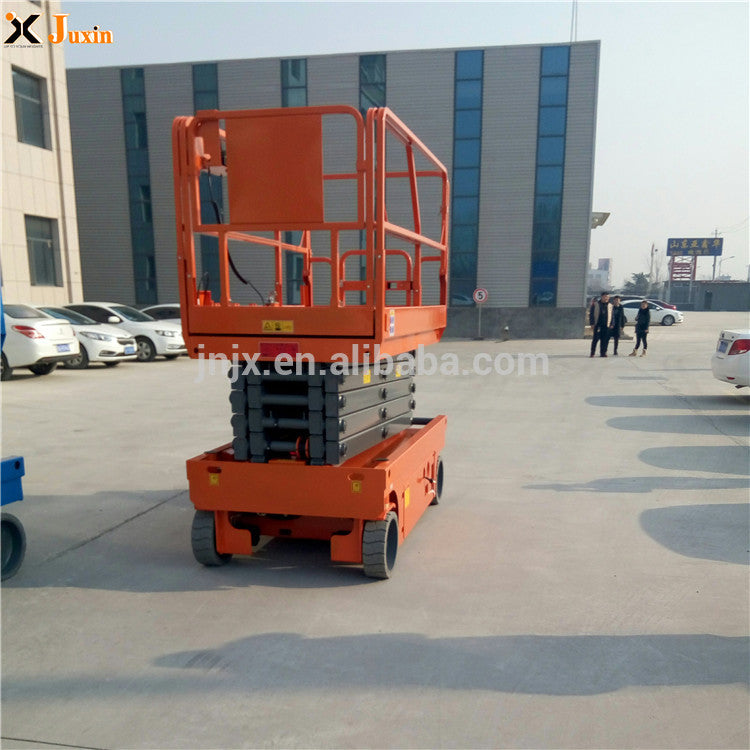

Photos:
Our factory have 15 years manufacturing experience in hydraulic lifting industry. We past CE, ISO, SGS, TUV certificates.
